Factory Lead Time

8 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

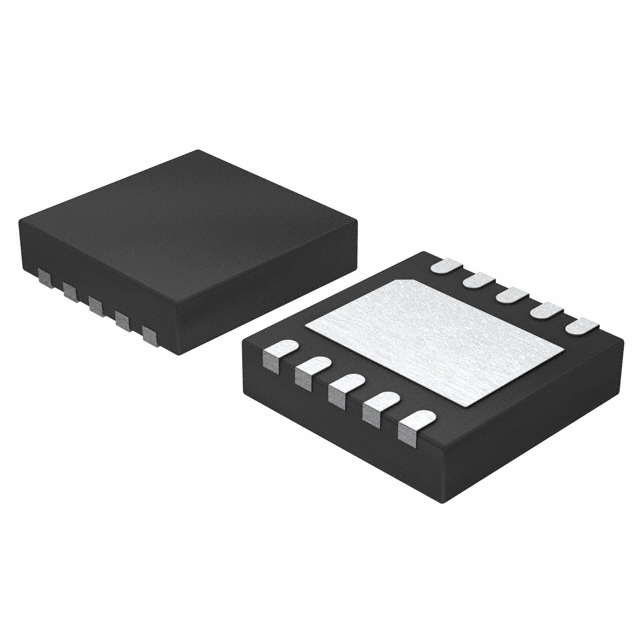

Package / Case

10-WFDFN Exposed Pad

Number of Pins

10

Operating Temperature

-40°C~150°C TJ

Packaging

Tape & Reel (TR)

Published

2011

JESD-609 Code

e3

Part Status

Active

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

10

ECCN Code

EAR99

Terminal Finish

Matte Tin (Sn) - annealed

Applications

Fan Motor Driver

Voltage - Supply

2V~5.5V

Terminal Position

DUAL

Supply Voltage

5V

Terminal Pitch

0.5mm

Base Part Number

MD6502B

Function

Driver - Fully Integrated, Control and Power Stage

Number of Outputs

1

Supply Voltage-Max (Vsup)

5.5V

Power Supplies

2.5/5V

Supply Voltage-Min (Vsup)

2V

Interface

PWM

Analog IC - Other Type

BRUSHLESS DC MOTOR CONTROLLER

Output Configuration

Half Bridge (3)

Current - Output

1A

Voltage - Load

2V~5.5V

Motor Type - AC, DC

Brushless DC (BLDC)

Length

3mm

Height Seated (Max)

0.8mm

Width

3mm

Radiation Hardening

No

RoHS Status

ROHS3 Compliant
