Factory Lead Time

10 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

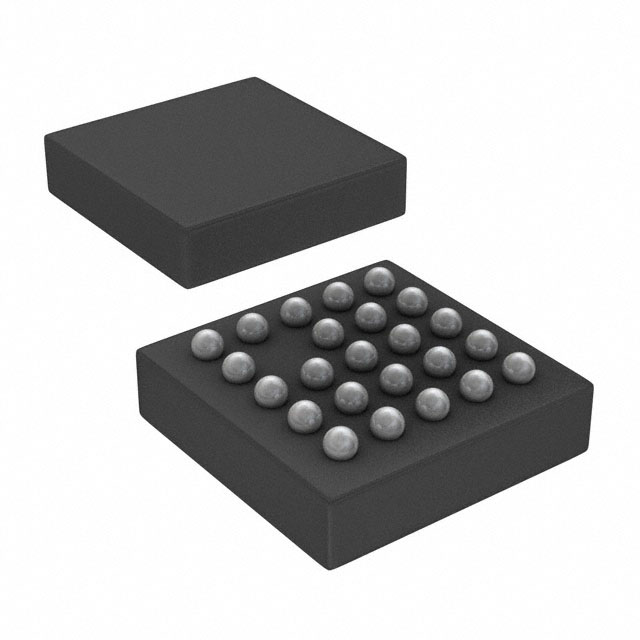

Package / Case

24-UFBGA, CSPBGA

Number of Pins

24

Operating Temperature

-25°C~150°C TJ

Packaging

Tape & Reel (TR)

Published

2008

Pbfree Code

yes

Part Status

Not For New Designs

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

24

ECCN Code

EAR99

Applications

Camera

HTS Code

8542.39.00.01

Voltage - Supply

2.7V~5.5V

Terminal Position

BOTTOM

Terminal Form

BALL

Supply Voltage

3V

Terminal Pitch

0.5mm

Base Part Number

BD6370

Function

Driver - Fully Integrated, Control and Power Stage

Supply Voltage-Max (Vsup)

5.5V

Power Supplies

3V

Supply Voltage-Min (Vsup)

2.7V

Interface

Serial

Analog IC - Other Type

STEPPER MOTOR CONTROLLER

Output Configuration

Half Bridge (10)

Logic Function

AND

Supply Current-Max (Isup)

2mA

Voltage - Load

2.7V~5.5V

Motor Type - AC, DC

Brushed DC

Motor Type - Stepper

Bipolar

Length

2.6mm

Height Seated (Max)

0.55mm

Width

2.6mm

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
