Lifecycle Status

ACTIVE (Last Updated: 8 months ago)

Factory Lead Time

12 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

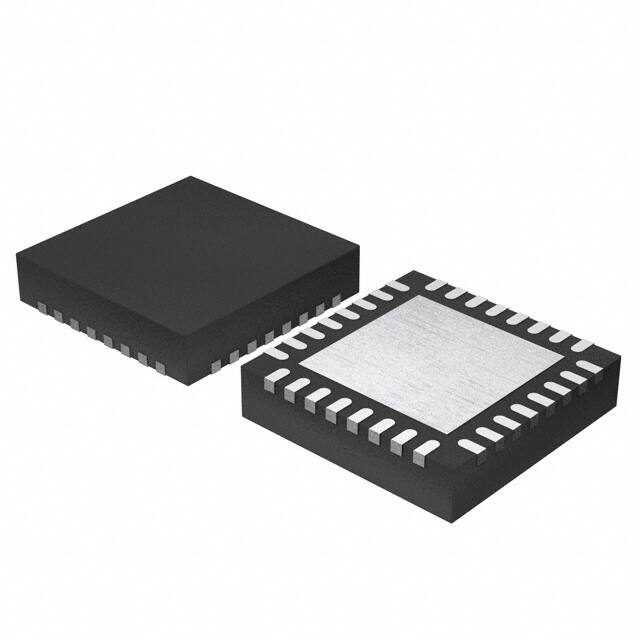

Package / Case

32-VFQFN Exposed Pad

Number of Pins

32

SwitchingFrequency

100kHz

Turn Off Delay Time

1 μs

Operating Temperature

-25°C~125°C TJ

Packaging

Tray

Series

STSPIN L62

JESD-609 Code

e4

Part Status

Active

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

32

ECCN Code

EAR99

Resistance

730mOhm

Terminal Finish

Nickel/Palladium/Gold (Ni/Pd/Au)

Applications

General Purpose

Voltage - Supply

8V~52V

Terminal Position

QUAD

Supply Voltage

48V

Terminal Pitch

0.5mm

Frequency

100kHz

Base Part Number

L6226

Function

Driver - Fully Integrated, Control and Power Stage

Output Voltage

52V

Max Output Current

2.8A

Supply Voltage-Min (Vsup)

8V

Number of Channels

4

Interface

Parallel

Analog IC - Other Type

BRUSH DC MOTOR CONTROLLER

Output Configuration

Half Bridge (4)

Turn On Delay Time

1.9 μs

Logic Function

AND

Output Current per Channel

1.4A

Rise Time

250ns

Supply Current-Max (Isup)

10mA

Fall Time (Typ)

250 ns

Collector Emitter Voltage (VCEO)

52V

Max Collector Current

1.4A

Voltage - Load

8V~52V

Number of Drivers

2

Motor Type

Brushed

Motor Type - AC, DC

Brushed DC

Motor Type - Stepper

Bipolar

Height

950μm

Length

5.15mm

Width

5.15mm

REACH SVHC

No SVHC

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
