Factory Lead Time

26 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

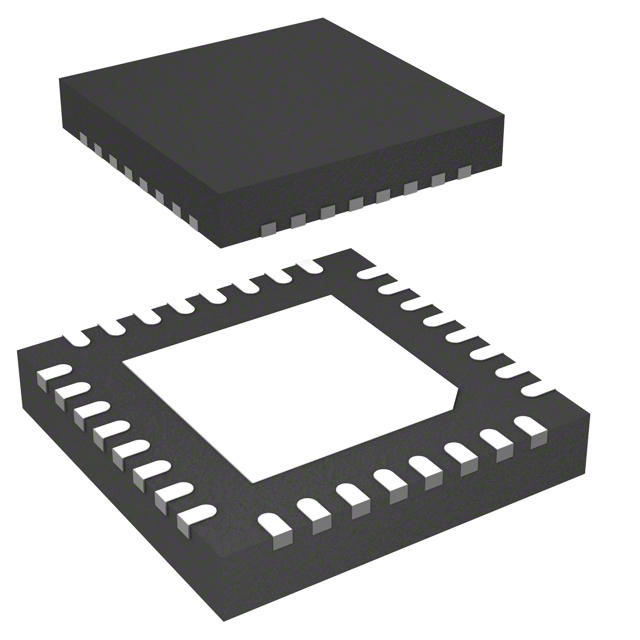

Package / Case

32-VFQFN Exposed Pad

Number of Pins

32

Operating Temperature

-40°C~125°C TJ

Packaging

Tray

Published

2008

JESD-609 Code

e3

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

32

ECCN Code

EAR99

Terminal Finish

Matte Tin (Sn)

Applications

General Purpose

Voltage - Supply

3V~5.25V

Terminal Position

QUAD

Terminal Form

NO LEAD

Peak Reflow Temperature (Cel)

260

Supply Voltage

24V

Terminal Pitch

0.5mm

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Function

Controller - Commutation, Direction Management

Number of Outputs

8

Output Voltage

10V

Supply Voltage-Max (Vsup)

59V

Supply Voltage-Min (Vsup)

9V

Interface

SPI, Step/Direction

Nominal Supply Current

12mA

Output Configuration

Pre-Driver - Half Bridge (4)

Output Current

15mA

Voltage - Load

9V~59V

Max Junction Temperature (Tj)

150°C

Motor Type

Stepper

Motor Type - Stepper

Bipolar

Step Resolution

1 ~ 1/256

Height

900μm

Length

5mm

Width

5mm

REACH SVHC

No SVHC

RoHS Status

ROHS3 Compliant
