BA6218 - ROHM Semiconductor

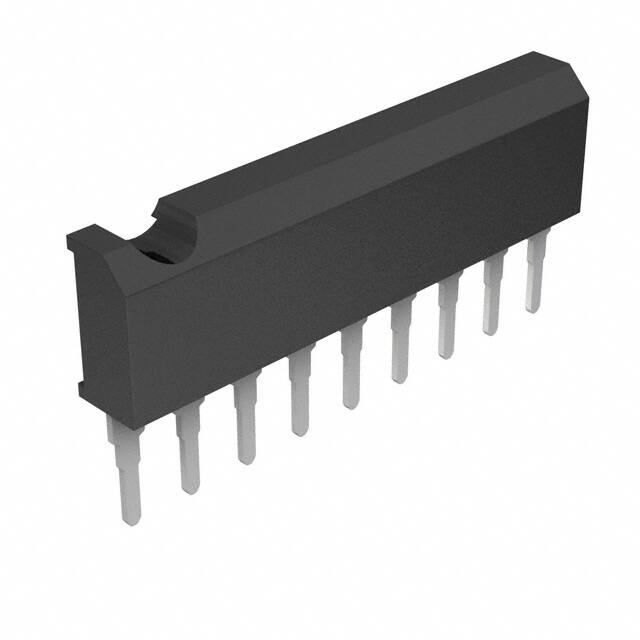

Die Bilder dienen nur als Referenz Siehe Produktspezifikationen

Kynix Teil #: KY20-BA6218

Hersteller Teil #: BA6218

Produktkategorie: PMIC - Full, Half-Bridge Drivers

Hersteller: ROHM Semiconductor

Beschreibung: IC BRIDGE DRIVER PAR SIP9

Verpackung: 9-SIP

Menge:

Bleifrei-Status / RoHS-Status: Bleifrei / RoHS-konform

Vorlaufzeit: 3(168 Hours)

Datenblatt: datasheet

BA6218 Datenblatt

Attribute

Attribute Value

Mount

Through Hole

Mounting Type

Through Hole

Package / Case

9-SIP

Operating Temperature

-20°C~60°C TA

Packaging

Tube

Published

1999

JESD-609 Code

Pbfree Code

yes

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

ECCN Code

EAR99

Terminal Finish

Tin/Copper (Sn/Cu)

Applications

DC Motors, General Purpose

Voltage - Supply

4.5V~15V

Terminal Position

SINGLE

Peak Reflow Temperature (Cel)

260

Number of Functions

Supply Voltage

Terminal Pitch

2.54mm

Time@Peak Reflow Temperature-Max (s)

Base Part Number

BA6218

Pin Count

JESD-30 Code

R-PSIP-T9

Number of Outputs

Qualification Status

Not Qualified

Power Supplies

Supply Voltage-Min (Vsup)

4.5V

Interface

Logic

Analog IC - Other Type

BRUSH DC MOTOR CONTROLLER

Output Configuration

Half Bridge (2)

Output Current

700mA

Supply Current-Max (Isup)

70mA

Voltage - Load

4.5V~15V

Load Type

Inductive

Height Seated (Max)

7.2mm

Width

2.8mm

RoHS Status

ROHS3 Compliant

Lead Free

Telefon	Teilenummer	Paket	Beschreibung

BA6218 Preis
BA6218 Verteilers
BA6218 Hersteller
BA6218 Technische Daten
BA6218 PDF
BA6218 Datenblätter
BA6218 Bild
BA6218 Foto
BA6218 Teil
BA6218 Lagerbestand
BA6218 Inventar
BA6218 Angebotsanfrage
Kaufen BA6218
BA6218 Anfrage
BA6218 Onlinebestellung

Suchen Sie nach anderen Teilen wie ba621

How many types of motor drivers are there?

There are three general categories of electric drives: DC motor drives, eddy current drives and AC motor drives.

What is the function motor driver?

Motor drivers acts as an interface between the motors and the control circuits. Motor require high amount of current whereas the controller circuit works on low current signals. So the function of motor drivers is to take a low-current control signal and then turn it into a higher-current signal that can drive a motor.

Why is a motor driver used in running a DC motor?

Without control of the DC motor torque/current, the motor is allowed to pull large currents that can often result in torques delivered in excess of what is mechanically viable for the system, leading to imminent failure (especially when gear with a large reduction ratio is used).
