Lifecycle Status

ACTIVE (Last Updated: 1 day ago)

Factory Lead Time

6 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

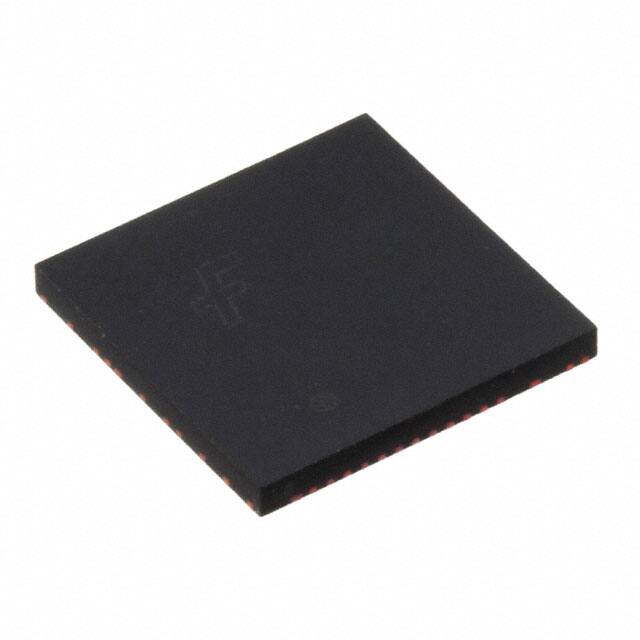

Package / Case

27-PowerLQFN Module

Number of Pins

27

Weight

2.174663g

SwitchingFrequency

15kHz

Packaging

Tape & Reel (TR)

Series

Motion SPM® 7

Published

2016

JESD-609 Code

e3

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

27

ECCN Code

EAR99

Type

MOSFET

Terminal Finish

Tin (Sn)

Max Operating Temperature

150°C

Min Operating Temperature

-40°C

HTS Code

8541.29.00.95

Max Power Dissipation

110W

Peak Reflow Temperature (Cel)

260

Supply Voltage

15V

Reach Compliance Code

not_compliant

Frequency

15kHz

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Number of Outputs

3

Qualification Status

Not Qualified

Voltage - Isolation

1500Vrms

Operating Supply Voltage

300V

Power Supplies

15V

Configuration

3 Phase

Max Supply Voltage

400V

Max Current Rating

4.8A

Operating Supply Current

1.7mA

Output Current

4.8A

Collector Emitter Voltage (VCEO)

500V

Max Collector Current

4.8A

Drain to Source Resistance

1.9Ohm

Min Breakdown Voltage

500V

Height

1.4mm

Length

13mm

Width

13mm

RoHS Status

ROHS3 Compliant
