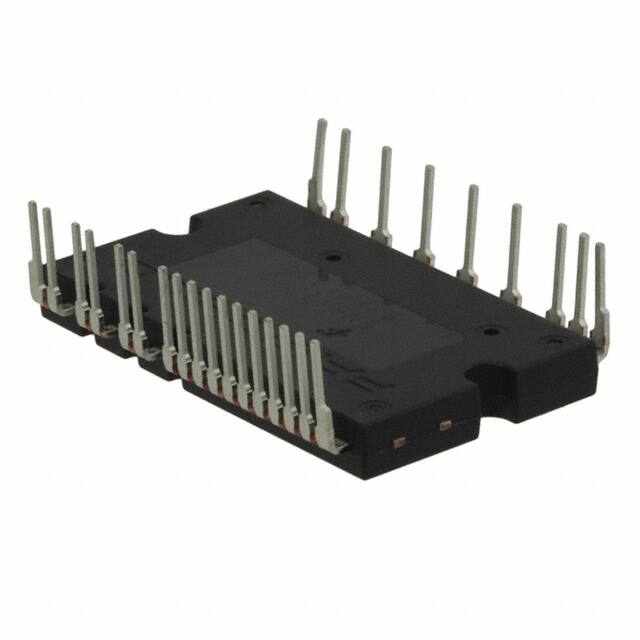

Lifecycle Status

ACTIVE, NOT REC (Last Updated: 2 days ago)

Factory Lead Time

45 Weeks

Mount

Through Hole

Mounting Type

Through Hole

Package / Case

26-PowerDIP Module (1.024, 26.00mm)

Number of Pins

26

Weight

16.712g

Collector-Emitter Saturation Voltage

1.6V

SwitchingFrequency

20kHz

Series

Motion SPM® 45

Published

2014

JESD-609 Code

e3

Pbfree Code

yes

Part Status

Not For New Designs

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

26

ECCN Code

EAR99

Type

IGBT

Terminal Finish

Tin (Sn)

Max Operating Temperature

150°C

Min Operating Temperature

-40°C

HTS Code

8541.29.00.95

Max Power Dissipation

34W

Terminal Position

DUAL

Number of Functions

1

Supply Voltage

15V

Number of Outputs

3

Voltage - Isolation

2000Vrms

Power Supplies

15V

Configuration

3 Phase

Max Supply Voltage

400V

Min Supply Voltage

13.5V

Max Current Rating

15A

Output Current

15A

Collector Emitter Voltage (VCEO)

2.1V

Max Collector Current

15A

Max Junction Temperature (Tj)

150°C

Min Breakdown Voltage

600V

Height

6.5mm

Length

39mm

Width

23mm

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
