Factory Lead Time

9 Weeks

Contact Plating

Copper, Tin

Mount

Through Hole

Mounting Type

Through Hole

Number of Pins

24

Housing Material

Polybutylene Terephthalate (PBT), Glass Filled

Number of Positions or Pins (Grid)

24 (2 x 12)

Contact Material - Mating

Phosphor Bronze

Contact Material - Post

Phosphor Bronze

Contact Finish Mating

Tin

Operating Temperature

-55°C~105°C

Packaging

Tube

Series

ICS

JESD-609 Code

e3

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Termination

Solder

ECCN Code

EAR99

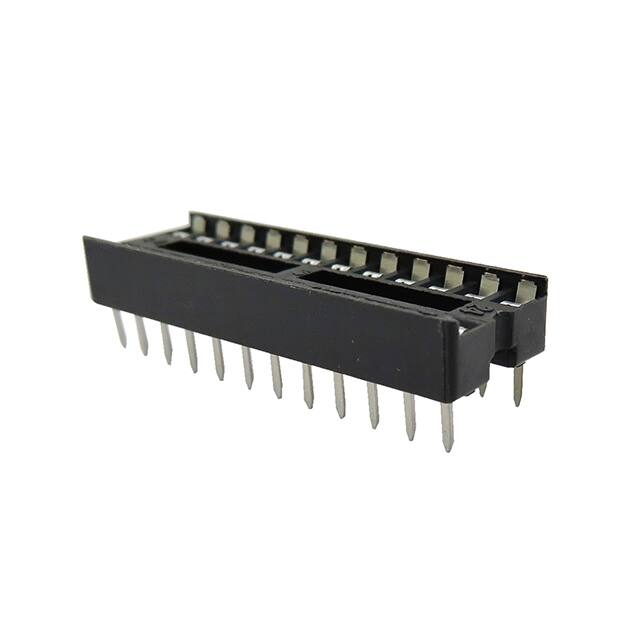

Type

DIP, 0.3 (7.62mm) Row Spacing

Additional Feature

STANDARD: UL 94V-0, LOW PROFILE

HTS Code

8536.69.40.40

Current Rating (Amps)

1A

Terminal Pitch

7.62mm

Pitch - Mating

0.100 2.54mm

Body Length or Diameter

1.2 inch

Lead Pitch

2.54mm

Number of Contacts

24

PCB Contact Pattern

RECTANGULAR

Body Breadth

0.394 inch

Body Depth

0.189 inch

Contact Style

BELLOWED TYPE

Contact Resistance

20mOhm

Insulation Resistance

5000000000Ohm

Mating Contact Pitch

0.1 inch

Dielectric Withstanding Voltage

1000VAC V

PCB Contact Row Spacing

0.3 mm

Termination Post Length

0.124 3.15mm

Pitch - Post

0.100 2.54mm

Features

Open Frame

Material Flammability Rating

UL94 V-0

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
