Mount

Through Hole

Mounting Type

Through Hole

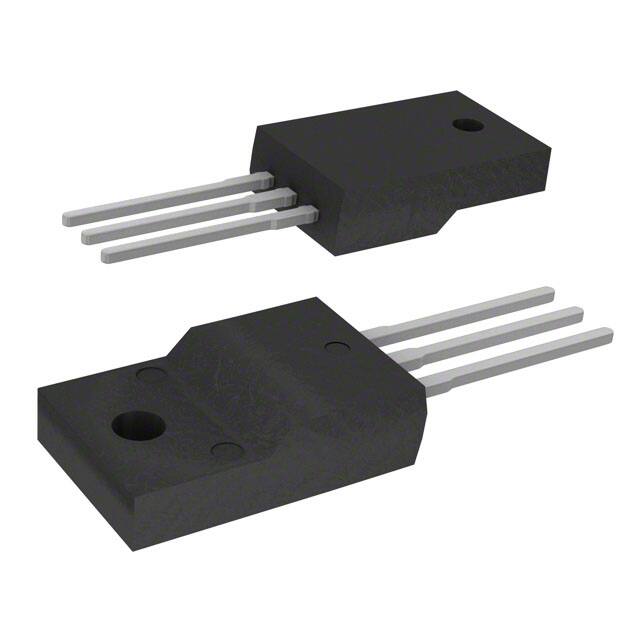

Package / Case

ISOWATT220AB-3

Number of Pins

3

Number of Elements

1

Operating Temperature

-40°C~125°C TJ

Packaging

Tube

Series

Snubberless™

JESD-609 Code

e3

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

3

Terminal Finish

Matte Tin (Sn)

Additional Feature

UL RECOGNIZED

Voltage - Rated DC

800V

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Reach Compliance Code

not_compliant

Current Rating

8A

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Base Part Number

T820

Pin Count

3

Qualification Status

Not Qualified

Configuration

Single

Case Connection

ISOLATED

JEDEC-95 Code

TO-220AB

RMS Current (Irms)

8A

Hold Current

35mA

Trigger Device Type

SNUBBERLESS TRIAC

Voltage - Gate Trigger (Vgt) (Max)

1.3V

Current - Non Rep. Surge 50, 60Hz (Itsm)

100A 105A

Current - Gate Trigger (Igt) (Max)

20mA

Current - Hold (Ih) (Max)

35mA

Leakage Current (Max)

2mA

Critical Rate of Rise of Off-State Voltage-Min

200V/us

Triac Type

Alternistor - Snubberless

RMS On-state Current-Max

8A

Critical Rate of Rise of Commutation Voltage-Min

10V/us

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
