Factory Lead Time

18 Weeks

Mounting Type

Surface Mount

Package / Case

64-TQFP

Surface Mount

YES

Number of Pins

64

Data Converters

A/D 16x12b

Number of I/Os

50

ROM(word)

196608

Operating Temperature

-40°C~85°C TA

Packaging

Tape & Reel (TR)

Series

AVR® XMEGA® D3

Published

2015

JESD-609 Code

e3

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

64

Terminal Finish

Matte Tin (Sn)

Terminal Position

QUAD

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

260

Terminal Pitch

0.5mm

Frequency

32MHz

Time@Peak Reflow Temperature-Max (s)

40

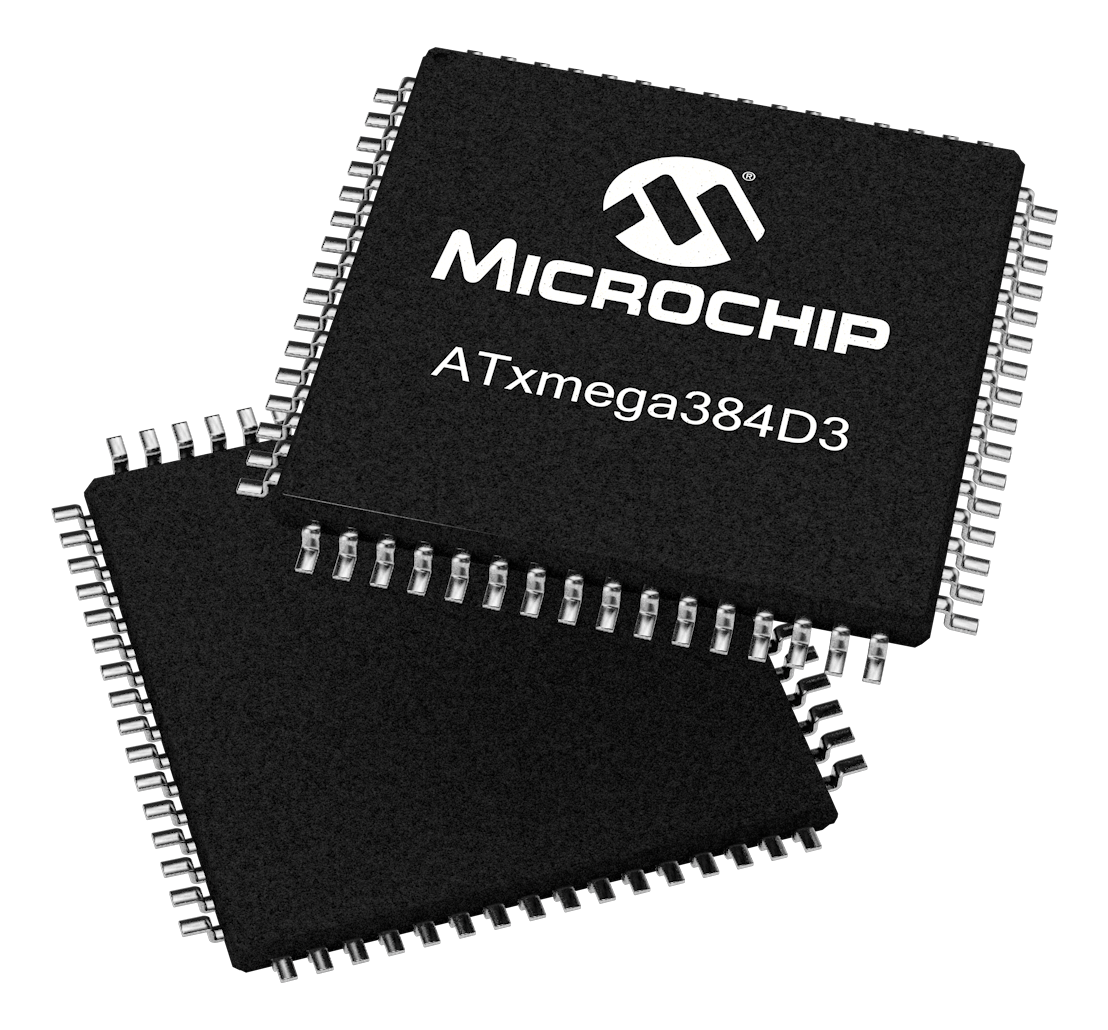

Base Part Number

ATXMEGA384

Qualification Status

Not Qualified

Supply Voltage-Max (Vsup)

3.6V

Power Supplies

1.8/3.3V

Supply Voltage-Min (Vsup)

1.6V

Interface

I2C, IrDA, SPI, UART, USART

Memory Size

384kB

Oscillator Type

Internal

RAM Size

32K x 8

Voltage - Supply (Vcc/Vdd)

1.6V~3.6V

uPs/uCs/Peripheral ICs Type

MICROCONTROLLER, RISC

Core Processor

AVR

Peripherals

Brown-out Detect/Reset, DMA, POR, PWM, WDT

Program Memory Type

FLASH

Core Size

8/16-Bit

Program Memory Size

384KB 384K x 8

Connectivity

I2C, IrDA, SPI, UART/USART

Bit Size

8

Has ADC

YES

DMA Channels

NO

PWM Channels

YES

EEPROM Size

4K x 8

Length

9mm

Width

9mm

RoHS Status

ROHS3 Compliant
