Mounting Type

Surface Mount

Package / Case

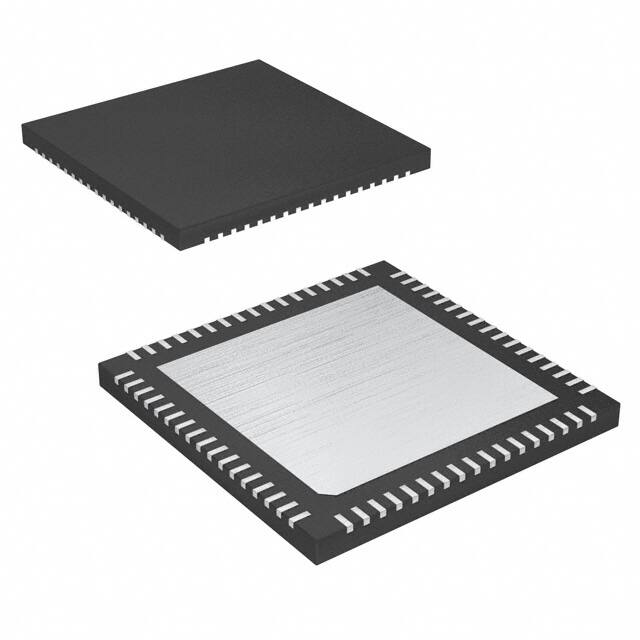

68-VFQFN Exposed Pad

Surface Mount

YES

Number of Pins

68

Number of I/Os

50

Operating Temperature

-40°C~85°C TA

Packaging

Tube

Series

MAXQ®

Published

2008

JESD-609 Code

e3

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

68

ECCN Code

EAR99

Terminal Finish

Matte Tin (Sn)

Additional Feature

ALSO OPERATES AT 1.8V SUPPLY AT 14 MHZ

Voltage - Supply

2.5V

Terminal Position

QUAD

Terminal Form

NO LEAD

Peak Reflow Temperature (Cel)

260

Terminal Pitch

0.5mm

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Base Part Number

MAXQ2000

Qualification Status

Not Qualified

Oscillator Type

Internal

Speed

20MHz

RAM Size

2K x 8

Peripherals

LCD, POR, PWM, WDT

Program Memory Type

FLASH

Core Size

16-Bit

Program Memory Size

64KB 32K x 16

Connectivity

1-Wire®, SPI, UART/USART

Bit Size

16

Has ADC

NO

DMA Channels

NO

PWM Channels

YES

DAC Channels

NO

Core Architecture

RISC

Number of UART Channels

2

Length

10mm

Height Seated (Max)

0.9mm

Width

10mm

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
