Mounting Type

Surface Mount

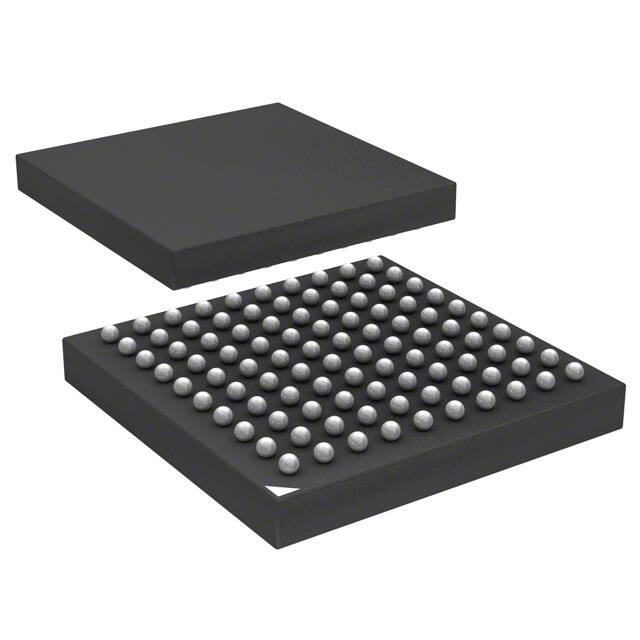

Package / Case

100-LFBGA

Surface Mount

YES

Number of Pins

100

Data Converters

A/D 16x10b

Number of I/Os

72

Operating Temperature

-40°C~85°C TA

Packaging

Tray

Series

STR7

JESD-609 Code

e1

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

100

ECCN Code

3A001.A.3

Terminal Finish

Tin/Silver/Copper (Sn/Ag/Cu)

Additional Feature

ALSO OPERATES AT 3V MINIMUM SUPPLY

HTS Code

8542.31.00.01

Max Power Dissipation

487mW

Terminal Position

BOTTOM

Terminal Form

BALL

Peak Reflow Temperature (Cel)

260

Supply Voltage

5V

Terminal Pitch

0.8mm

Frequency

60MHz

Base Part Number

STR750

Pin Count

100

Supply Voltage-Max (Vsup)

5.5V

Power Supplies

3.3/5V

Supply Voltage-Min (Vsup)

4.5V

Interface

CAN, I2C, SPI, SSP, UART, USART, USB

Memory Size

256kB

Oscillator Type

Internal

Speed

48 MHz

RAM Size

16K x 8

Voltage - Supply (Vcc/Vdd)

3V~5.5V

uPs/uCs/Peripheral ICs Type

MICROCONTROLLER, RISC

Core Processor

ARM7®

Peripherals

DMA, PWM, WDT

Program Memory Type

FLASH

Core Size

32-Bit

Program Memory Size

256KB 256K x 8

Connectivity

CANbus, I2C, SPI, SSI, SSP, UART/USART, USB

Bit Size

32

Access Time

60 μs

Has ADC

YES

DMA Channels

YES

Data Bus Width

32b

PWM Channels

YES

DAC Channels

NO

Number of Timers/Counters

6

Core Architecture

ARM

Length

10mm

Height Seated (Max)

1.7mm

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
