Mount

Through Hole

Mounting Type

Through Hole

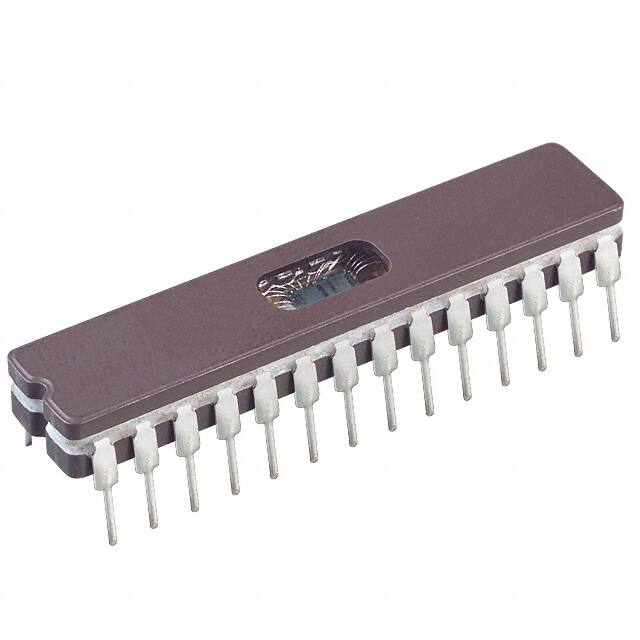

Package / Case

28-CDIP (0.300, 7.62mm) Window

Number of Pins

28

Data Converters

A/D 5x8b

Memory Types

EPROM

Number of I/Os

22

ROM(word)

8192

Operating Temperature

0°C~70°C TA

Packaging

Tube

Series

PIC® 16C

Published

1997

JESD-609 Code

e3

Pbfree Code

yes

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

28

Terminal Finish

Matte Tin (Sn)

Terminal Position

DUAL

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Supply Voltage

5V

Terminal Pitch

2.54mm

Frequency

20MHz

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Base Part Number

PIC16C76

Pin Count

28

Qualification Status

Not Qualified

Supply Voltage-Max (Vsup)

6V

Power Supplies

5V

Supply Voltage-Min (Vsup)

4.5V

Interface

I2C, SPI, UART, USART

Memory Size

8kB

Oscillator Type

External

RAM Size

368 x 8

Voltage - Supply (Vcc/Vdd)

4V~6V

uPs/uCs/Peripheral ICs Type

MICROCONTROLLER, RISC

Core Processor

PIC

Peripherals

Brown-out Detect/Reset, POR, PWM, WDT

Program Memory Type

EPROM, UV

Core Size

8-Bit

Program Memory Size

14KB 8K x 14

Connectivity

I2C, SPI, UART/USART

Supply Current-Max

5mA

Bit Size

8

Access Time

20 μs

Has ADC

YES

DMA Channels

NO

Data Bus Width

8b

PWM Channels

YES

DAC Channels

NO

Number of Timers/Counters

3

On Chip Program ROM Width

14

CPU Family

PIC

ROM Programmability

UVPROM

RoHS Status

Non-RoHS Compliant

Lead Free

Contains Lead
