Contact Plating

Gold

Mount

Surface Mount

Mounting Type

Surface Mount

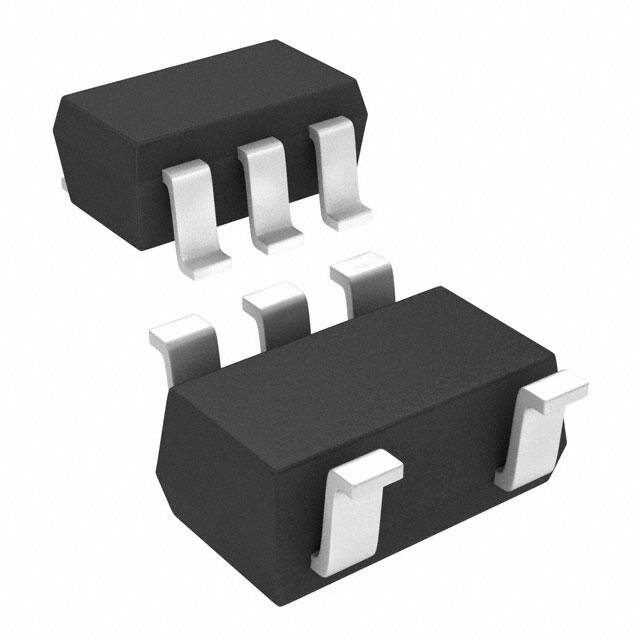

Package / Case

SC-74A, SOT-753

Number of Pins

5

Weight

4.535924g

Logic Level-High

2.2V ~ 3.85V

Logic Level-Low

0.9V ~ 1.65V

Operating Temperature

-55°C~125°C

Packaging

Tape & Reel (TR)

Series

74V

JESD-609 Code

e4

Pbfree Code

yes

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

5

Termination

SMD/SMT

Packing Method

TAPE AND REEL

Voltage - Supply

2V~5.5V

Terminal Position

DUAL

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

260

Number of Functions

1

Supply Voltage

3.3V

Time@Peak Reflow Temperature-Max (s)

30

Base Part Number

74V1G14

Pin Count

5

Max Output Current

8mA

Supply Voltage-Min (Vsup)

2V

Output Current

8mA

Propagation Delay

12 ns

Quiescent Current

1μA

Turn On Delay Time

12 ns

Family

74V

Logic Type

Inverter

Max I(ol)

0.004 A

Number of Gates

1

Max Propagation Delay @ V, Max CL

8ns @ 5V, 50pF

Schmitt Trigger

YES

Features

Schmitt Trigger

Height

6.35mm

Length

6.35mm

Width

6.35mm

REACH SVHC

No SVHC

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
