Factory Lead Time

5 Weeks

Mounting Type

Surface Mount

Package / Case

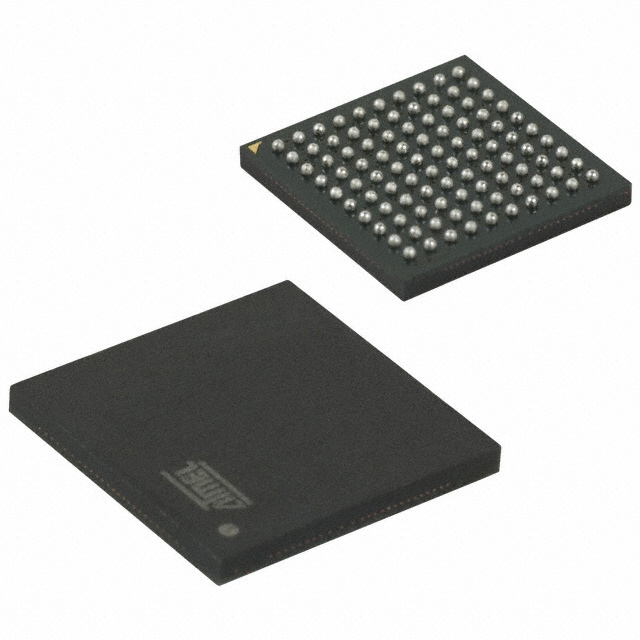

100-TFBGA

Surface Mount

YES

Number of Pins

100

Data Converters

A/D 15x10/12b; D/A 2x12b

Number of I/Os

79

Usage Level

Automotive grade

Operating Temperature

-40°C~85°C TA

Packaging

Cut Tape (CT)

Series

SAM3S

Published

2015

Part Status

Discontinued

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

100

Voltage - Supply

1.8V

Terminal Position

BOTTOM

Terminal Form

BALL

Terminal Pitch

0.8mm

Frequency

64MHz

Base Part Number

ATSAM3SD8

Interface

EBI/EMI, I2C, IrDA, SPI, UART, USART, USB

Memory Size

512kB

Oscillator Type

Internal

RAM Size

64K x 8

uPs/uCs/Peripheral ICs Type

MICROCONTROLLER, RISC

Core Processor

ARM® Cortex®-M3

Peripherals

Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT

Program Memory Type

FLASH

Core Size

32-Bit

Program Memory Size

512KB 512K x 8

Connectivity

EBI/EMI, I2C, IrDA, Memory Card, SPI, SSC, UART/USART, USB

Bit Size

32

Has ADC

YES

DMA Channels

YES

PWM Channels

YES

DAC Channels

YES

Address Bus Width

24

Core Architecture

ARM

On Chip Program ROM Width

8

Screening Level

TS 16949

External Data Bus Width

8

Voltage - Supply (Max)

1.95V

Voltage - Supply (Min)

1.62V

Length

9mm

Height Seated (Max)

1.1mm

Width

9mm

RoHS Status

ROHS3 Compliant
