Factory Lead Time

21 Weeks

Mounting Type

Surface Mount

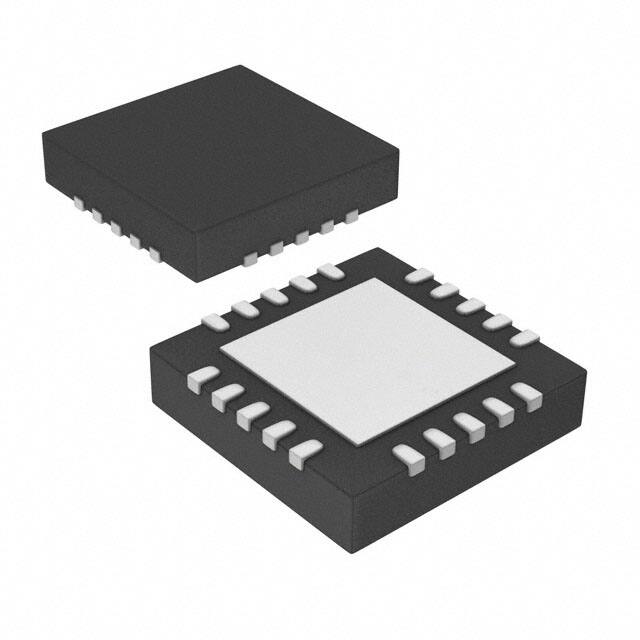

Package / Case

20-VFQFN Exposed Pad

Surface Mount

YES

Number of Pins

20

Data Converters

A/D 12x8b

Number of I/Os

17

Watchdog Timers

Yes

Operating Temperature

-40°C~85°C TA

Packaging

Tape & Reel (TR)

Series

PIC® 16F

Published

2011

JESD-609 Code

e3

Part Status

Active

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

20

Terminal Finish

Matte Tin (Sn)

Max Power Dissipation

800mW

Terminal Position

QUAD

Peak Reflow Temperature (Cel)

260

Supply Voltage

3.3V

Terminal Pitch

0.5mm

Frequency

16MHz

Time@Peak Reflow Temperature-Max (s)

40

Base Part Number

PIC16LF720

Pin Count

20

Operating Supply Voltage

3.3V

Interface

I2C, SPI, UART, USART

Memory Size

3.5kB

Oscillator Type

Internal

RAM Size

128 x 8

Voltage - Supply (Vcc/Vdd)

1.8V~3.6V

uPs/uCs/Peripheral ICs Type

MICROCONTROLLER, RISC

Number of Bits

8

Core Processor

PIC

Peripherals

Brown-out Detect/Reset, POR, PWM, WDT

Program Memory Type

FLASH

Core Size

8-Bit

Program Memory Size

3.5KB 2K x 14

Connectivity

I2C, SPI, UART/USART

Bit Size

8

Has ADC

YES

DMA Channels

NO

Data Bus Width

8b

Number of Timers/Counters

3

CPU Family

PIC

Number of ADC Channels

12

Number of PWM Channels

1

Height

950μm

Length

4mm

Width

4mm

Radiation Hardening

No

RoHS Status

ROHS3 Compliant
