Factory Lead Time

7 Weeks

Contact Plating

Copper, Silver, Tin

Mount

Surface Mount

Mounting Type

Surface Mount

Package / Case

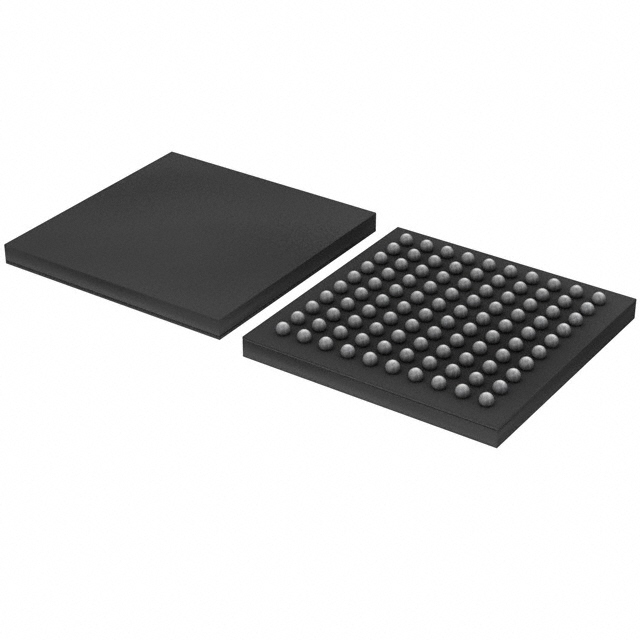

100-TFBGA

Number of Pins

100

Data Converters

A/D 16x12b; D/A 4x12b

Number of I/Os

78

ROM(word)

65536

Watchdog Timers

Yes

Operating Temperature

-40°C~85°C TA

Packaging

Tray

Series

AVR® XMEGA® A1U

Published

2012

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

100

Terminal Position

BOTTOM

Terminal Form

BALL

Supply Voltage

3V

Frequency

32MHz

Base Part Number

ATXMEGA128

Qualification Status

Not Qualified

Supply Voltage-Max (Vsup)

3.6V

Interface

EBI/EMI, I2C, IrDA, SPI, UART, USART, USB

Memory Size

128kB

Oscillator Type

Internal

RAM Size

8K x 8

Voltage - Supply (Vcc/Vdd)

1.6V~3.6V

uPs/uCs/Peripheral ICs Type

MICROCONTROLLER, RISC

Core Processor

AVR

Peripherals

Brown-out Detect/Reset, DMA, POR, PWM, WDT

Program Memory Type

FLASH

Core Size

8/16-Bit

Program Memory Size

128KB 64K x 16

Connectivity

EBI/EMI, I2C, IrDA, SPI, UART/USART, USB

Bit Size

16

Has ADC

YES

DMA Channels

YES

Data Bus Width

8b

Number of Timers/Counters

8

EEPROM Size

2K x 8

Boundary Scan

YES

Low Power Mode

NO

Format

FIXED-POINT

Integrated Cache

NO

Number of UART Channels

7

Number of ADC Channels

2

Number of Serial I/Os

8

Number of PWM Channels

22

Number of I2C Channels

4

Number of SPI Channels

10

Number of USB Channels

1

Height

800μm

Length

9.1mm

Width

9.1mm

REACH SVHC

No SVHC

RoHS Status

ROHS3 Compliant
