Factory Lead Time

10 Weeks

Mounting Type

Surface Mount

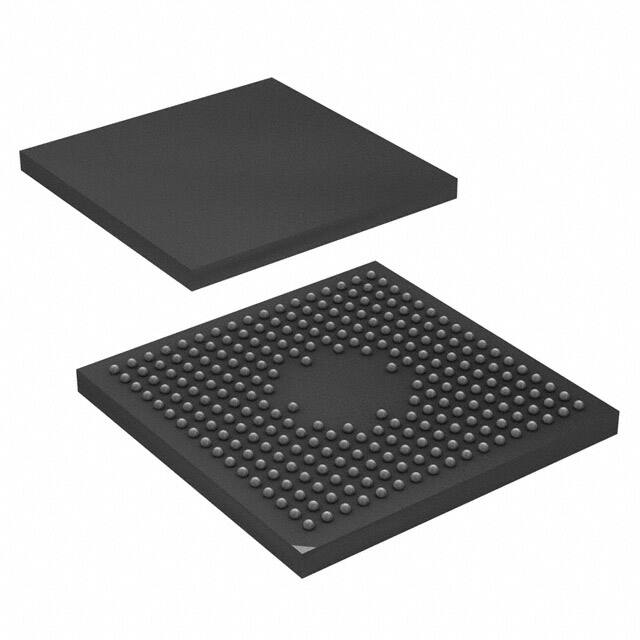

Package / Case

256-LFBGA

Surface Mount

YES

Number of Pins

256

Number of I/Os

122

ROM(word)

131072

Operating Temperature

-40°C~85°C TA

Packaging

Tray

Series

AT91

Published

1997

JESD-609 Code

e1

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

256

Terminal Finish

Tin/Silver/Copper (Sn/Ag/Cu)

Voltage - Supply

1.8V

Terminal Position

BOTTOM

Terminal Form

BALL

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Terminal Pitch

0.8mm

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Base Part Number

AT91RM9200

Qualification Status

Not Qualified

Power Supplies

1.83.3V

Oscillator Type

Internal

Speed

180MHz

RAM Size

48K x 8

uPs/uCs/Peripheral ICs Type

MICROCONTROLLER, RISC

Core Processor

ARM920T

Peripherals

POR

Clock Frequency

80MHz

Program Memory Type

ROM

Core Size

16/32-Bit

Program Memory Size

128KB 128K x 8

Connectivity

EBI/EMI, Ethernet, I2C, Memory Card, SPI, SSC, UART/USART, USB

Supply Current-Max

24.5mA

Bit Size

32

Has ADC

NO

DMA Channels

YES

PWM Channels

YES

DAC Channels

NO

Address Bus Width

26

CPU Family

ARM7

External Data Bus Width

32

Voltage - Supply (Max)

1.95V

ROM Programmability

FLASH

Voltage - Supply (Min)

1.65V

Length

15mm

Height Seated (Max)

1.25mm

Width

15mm

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
