Mount

Through Hole

Mounting Type

Through Hole

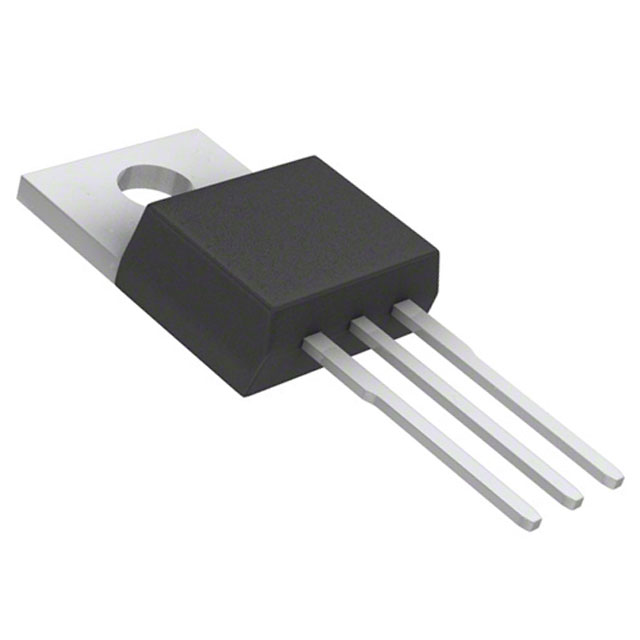

Package / Case

TO-220-3

Number of Elements

1

Voltage-Off State

1kV

Operating Temperature

-40°C~125°C

Packaging

Bulk

Published

2016

JESD-609 Code

e0

Pbfree Code

no

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

3

ECCN Code

EAR99

Terminal Finish

Tin/Lead (Sn/Pb)

HTS Code

8541.30.00.80

Terminal Position

SINGLE

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Pin Count

3

JESD-30 Code

R-PSFM-T3

Qualification Status

Not Qualified

Configuration

SINGLE

Case Connection

ANODE

JEDEC-95 Code

TO-220AB

RMS Current (Irms)

16A

Hold Current

20mA

Trigger Device Type

SCR

Voltage - Gate Trigger (Vgt) (Max)

1.5V

Current - Gate Trigger (Igt) (Max)

15mA

On-State Current-Max

16000A

Current - On State (It (RMS)) (Max)

16A

Repetitive Peak Off-state Voltage

1000V

Non-Repetitive Pk On-state Cur

160 A

SCR Type

Standard Recovery

Voltage - On State (Vtm) (Max)

1.6V

Repetitive Peak Reverse Voltage

1000V

Holding Current-Max

40mA

RoHS Status

RoHS Compliant
