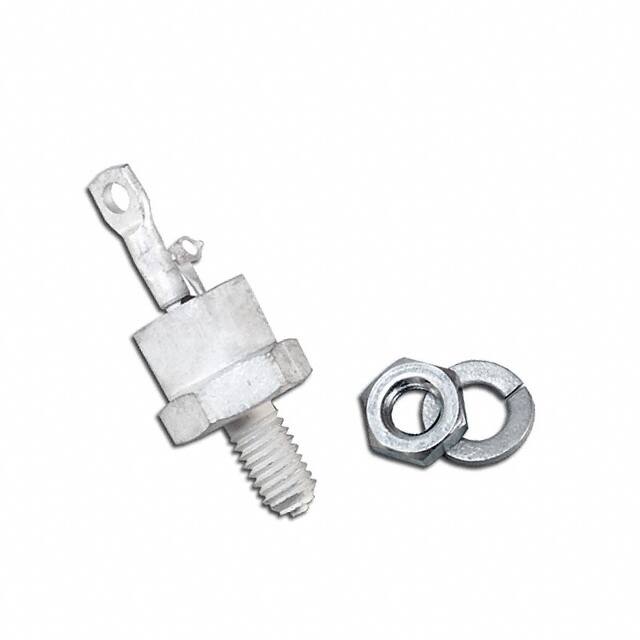

Factory Lead Time

8 Weeks

Mount

Chassis, Stud

Mounting Type

Chassis, Stud Mount

Package / Case

TO-208AA, TO-48-3, Stud

Number of Pins

3

Number of Elements

1

Operating Temperature

-40°C~125°C

Packaging

Bulk

Published

2000

JESD-609 Code

e3

Pbfree Code

yes

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

Not Applicable

Number of Terminations

2

Terminal Finish

Matte Tin (Sn)

Voltage - Rated DC

1.6kV

Terminal Position

UPPER

Terminal Form

UNSPECIFIED

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Current Rating

25A

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Pin Count

2

JESD-30 Code

O-MUPM-X2

Qualification Status

Not Qualified

Configuration

SINGLE

Case Connection

ANODE

RMS Current (Irms)

50A

Hold Current

100mA

Trigger Device Type

SCR

Voltage - Gate Trigger (Vgt) (Max)

2.5V

Current - Non Rep. Surge 50, 60Hz (Itsm)

450A 480A

Current - Gate Trigger (Igt) (Max)

50mA

Current - On State (It (RMS)) (Max)

50A

Repetitive Peak Off-state Voltage

1600V

Current - On State (It (AV)) (Max)

32A

SCR Type

Standard Recovery

Voltage - On State (Vtm) (Max)

1.8V

Critical Rate of Rise of Off-State Voltage-Min

1000V/us

Current - Off State (Max)

3mA

Repetitive Peak Reverse Voltage

1600V

Circuit Commutated Turn-off Time-Nom

130 µs

RoHS Status

RoHS Compliant

Lead Free

Lead Free
