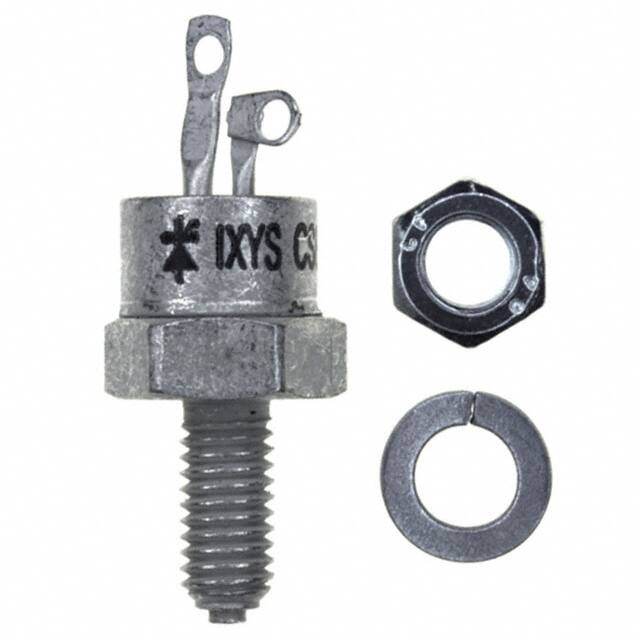

Mount

Chassis, Stud

Mounting Type

Chassis, Stud Mount

Package / Case

TO-208AB, TO-64-3, Stud

Number of Pins

3

Number of Elements

1

Voltage-Off State

1.2kV

Operating Temperature

-40°C~125°C

Packaging

Bulk

Published

2000

JESD-609 Code

e3

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

Not Applicable

Number of Terminations

2

Terminal Finish

Tin (Sn)

Voltage - Rated DC

1.2kV

Terminal Position

UPPER

Terminal Form

SOLDER LUG

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Current Rating

10A

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Pin Count

2

JESD-30 Code

O-MUPM-D2

Qualification Status

Not Qualified

Configuration

SINGLE

Case Connection

ANODE

Max Repetitive Reverse Voltage (Vrrm)

1.2kV

RMS Current (Irms)

25A

Hold Current

80mA

Trigger Device Type

SCR

Voltage - Gate Trigger (Vgt) (Max)

2.5V

Current - Non Rep. Surge 50, 60Hz (Itsm)

250A 270A

Current - Gate Trigger (Igt) (Max)

30mA

Repetitive Peak Off-state Voltage

1200V

Current - On State (It (AV)) (Max)

16A

Non-Repetitive Pk On-state Cur

250 A

SCR Type

Standard Recovery

Voltage - On State (Vtm) (Max)

1.6V

Critical Rate of Rise of Off-State Voltage-Min

1000V/us

Current - Off State (Max)

3mA

Circuit Commutated Turn-off Time-Nom

60 µs

Height

31mm

Length

12.69mm

Width

11mm

REACH SVHC

No SVHC

RoHS Status

RoHS Compliant

Lead Free

Lead Free
