Factory Lead Time

19 Weeks

Contact Plating

Copper, Silver, Tin

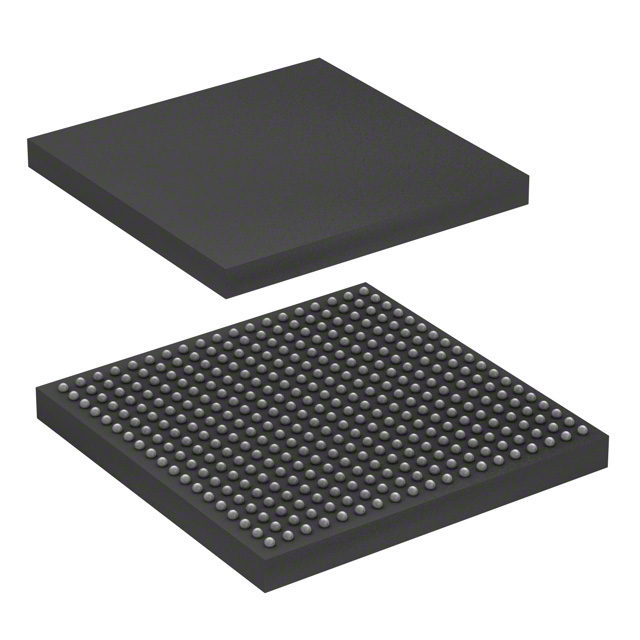

Package / Case

361-TFBGA

Surface Mount

YES

Number of Pins

361

Memory Types

L2 Cache, ROM, SRAM

Number of I/Os

152

Operating Temperature

-40°C~85°C TA

Packaging

Tray

Series

SAMA5D4

Published

2014

JESD-609 Code

e2

Pbfree Code

yes

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

361

Terminal Finish

Tin/Silver/Copper/Nickel (Sn/Ag/Cu/Ni)

Terminal Position

BOTTOM

Terminal Form

BALL

Supply Voltage

1.26V

Terminal Pitch

0.8mm

Frequency

528MHz

Base Part Number

ATSAMA5D42

Operating Supply Voltage

1.8V

Interface

2-Wire, EBI/EMI, Ethernet, I2C, MMC, SD, SPI, UART, USART, USB

Max Supply Voltage

1.98V

Min Supply Voltage

1.62V

Memory Size

128kB

Oscillator Type

Internal

Speed

600 MHz

RAM Size

128kB

uPs/uCs/Peripheral ICs Type

MICROPROCESSOR, RISC

Core Processor

ARM® Cortex®-A5

Peripherals

DMA, LCD, POR, PWM, WDT

Data Bus Width

32b

Number of Timers/Counters

3

Address Bus Width

26

Core Architecture

ARM

Boundary Scan

YES

Low Power Mode

YES

Format

FIXED POINT

Integrated Cache

YES

Voltage - I/O

1.2V 1.8V 3.3V

Ethernet

10/100Mbps (1)

Number of Cores/Bus Width

1 Core 32-Bit

Graphics Acceleration

Yes

RAM Controllers

LPDDR, LPDDR2, DDR2

USB

USB 2.0 (3)

Additional Interfaces

EBI, I2C, MMC/SD/SDIO, SPI, SSC, UART, USART

Co-Processors/DSP

Multimedia; NEON™ SIMD

Number of Cores

1

Security Features

AES, SHA, TDES, TRNG

Display & Interface Controllers

LCD, Touchscreen

REACH SVHC

No SVHC

RoHS Status

ROHS3 Compliant
