Factory Lead Time

10 Weeks

Package / Case

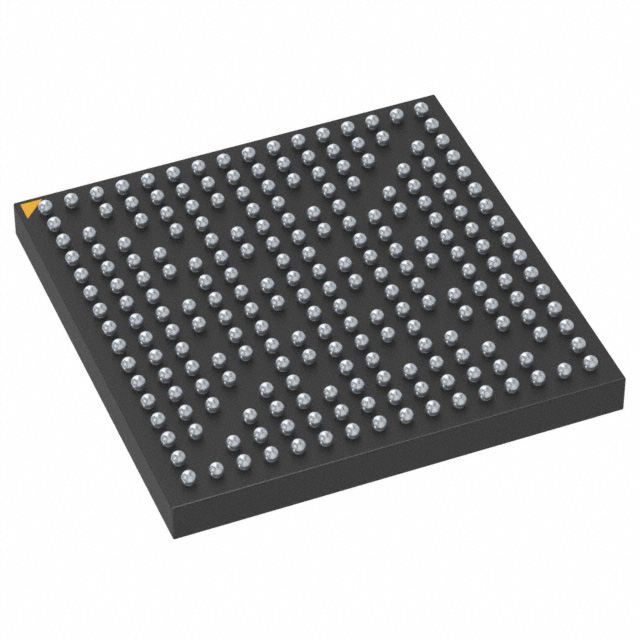

228-TFBGA

Surface Mount

YES

Operating Temperature

-40°C~105°C TA

Packaging

Tray

Series

SAM9X60

Part Status

Active

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

228

Terminal Position

BOTTOM

Terminal Form

BALL

Terminal Pitch

0.65mm

JESD-30 Code

R-PBGA-B228

Supply Voltage-Max (Vsup)

1.21V

Supply Voltage-Min (Vsup)

1.12V

Speed

600MHz

uPs/uCs/Peripheral ICs Type

MICROPROCESSOR, RISC

Core Processor

ARM926EJ-S

Clock Frequency

48MHz

Address Bus Width

26

Boundary Scan

YES

Low Power Mode

YES

External Data Bus Width

32

Format

FIXED POINT

Integrated Cache

YES

Voltage - I/O

3.3V

Ethernet

10/100Mbps (2)

Number of Cores/Bus Width

1 Core 32-Bit

Graphics Acceleration

Yes

RAM Controllers

LPDDR, LPSDR, DDR2, SDR, SRAM

USB

USB 2.0 (3)

Security Features

Boot Security, Cryptography, Memory Scrambling, Secure JTAG, Secure Key Storage, Secure RTC, Tamper Pins

Display & Interface Controllers

Keyboard, LCD, Touchscreen

Length

11mm

Height Seated (Max)

1.2mm

RoHS Status

ROHS3 Compliant
