Factory Lead Time

16 Weeks

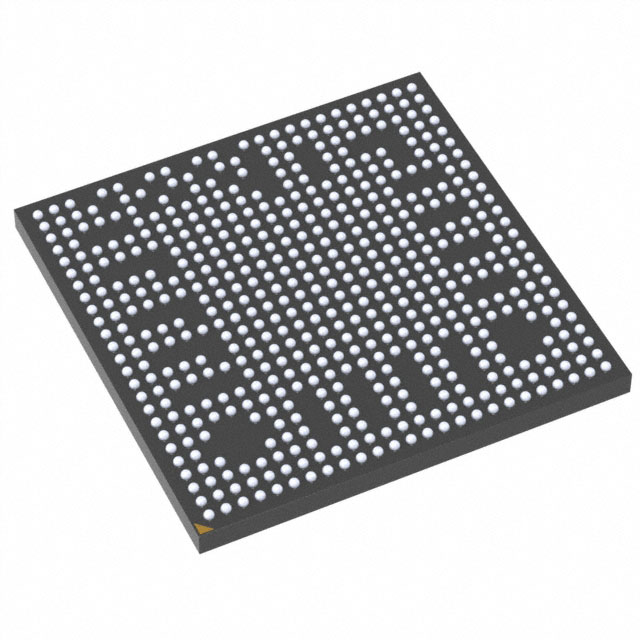

Package / Case

538-LFBGA, FCBGA

Surface Mount

YES

Operating Temperature

0°C~90°C TJ

Series

Sitara™

JESD-609 Code

e1

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

538

ECCN Code

5A992C

Terminal Finish

Tin/Silver/Copper (Sn/Ag/Cu)

Terminal Position

BOTTOM

Terminal Form

BALL

Peak Reflow Temperature (Cel)

260

Supply Voltage

1.15V

Terminal Pitch

0.65mm

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Base Part Number

AM5706

JESD-30 Code

S-PBGA-B538

Supply Voltage-Max (Vsup)

1.2V

Supply Voltage-Min (Vsup)

1.11V

Speed

533MHz

uPs/uCs/Peripheral ICs Type

MICROPROCESSOR, RISC

Core Processor

ARM® Cortex®-A15

Clock Frequency

32MHz

Address Bus Width

16

Boundary Scan

YES

Low Power Mode

YES

External Data Bus Width

32

Format

FIXED POINT

Integrated Cache

YES

Voltage - I/O

1.35V 1.5V 1.8V 3.3V

Ethernet

10/100/1000Mbps (2)

Number of Cores/Bus Width

1 Core 32-Bit

Graphics Acceleration

Yes

RAM Controllers

DDR3, DDR3L

USB

USB 2.0 (2), USB 3.0 (2)

Additional Interfaces

CAN, HDQ/1-Wire, I2C, McASP, MMC/SD/SDIO, QSPI, SPI, SD/SDIO, UART

Co-Processors/DSP

ARM® Cortex®-M4, C66x

Display & Interface Controllers

HDMI, Video

Length

17mm

Height Seated (Max)

1.298mm

RoHS Status

ROHS3 Compliant
