Factory Lead Time

8 Weeks

Mount

Chassis, Chassis Mount, Panel, Through Hole

Mounting Type

Panel Mount

Package / Case

Metal

Housing Material

Plastic

Body Material

Copper Alloy

Contact Material - Plating

Nickel

Contact Materials

Copper Alloy

Voltage Rated

25VDC

Operating Temperature

-20°C~65°C

Packaging

Bulk

Series

LITTEL-JAX®

Published

1998

Part Status

Active

Moisture Sensitivity Level (MSL)

Not Applicable

Number of Terminations

3

Termination

Solder Eyelet(s)

Connector Type

Phone Jack

Gender

Female

Orientation

Straight

Shielding

Unshielded

Current Rating

1A

Max Current Rating

1A

Number of Ports

1

Max Voltage Rating (DC)

25V

Thread Size

3/8-32

Number of Positions/Contacts

3 Conductors, 3 Contacts

Includes

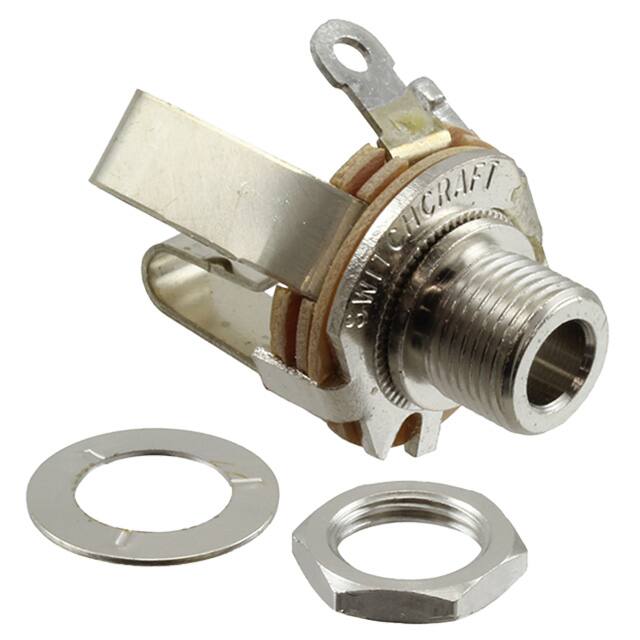

3 pcs - 1 Connector, 1 Nut, 1 Washer

Internal Switch(s)

Does Not Contain Switch

Body Color

Silver

Panel Hole Size

0.375 9.52mm

Industry Recognized Mating Diameter

5.23mm (0.206)

Actual Diameter

0.210 (5.33mm)

Signal Lines

Stereo (3 Conductor, TRS)

Mating Length/Depth

1.090 27.70mm

Features

Mounting Hardware, Thread Lock

Length

19.05mm

REACH SVHC

Unknown

RoHS Status

ROHS3 Compliant
