Factory Lead Time

8 Weeks

Contact Plating

Nickel, Tin

Mount

Panel

Mounting Type

Panel Mount

Package / Case

Metal

Housing Material

Copper Alloy

Body Material

Copper Alloy

Contact Material - Plating

Tin

Contact Finish Mating

NOT SPECIFIED

Contact Materials

Copper Alloy

Voltage Rated

48VDC

Packaging

Bulk

Series

35PM

Published

2006

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

2

Termination

Solder Eyelet(s)

ECCN Code

EAR99

Connector Type

Phone Jack

Gender

Female

MIL Conformance

NO

DIN Conformance

NO

IEC Conformance

NO

Option

GENERAL PURPOSE

Orientation

Straight

Shielding

Unshielded

Current Rating

250mA

Max Current Rating

25A

Number of Ports

1

Number of Poles

2

Max Voltage Rating (DC)

48V

Thread Size

1/4-32

Number of Positions/Contacts

2 Conductors, 2 Contacts

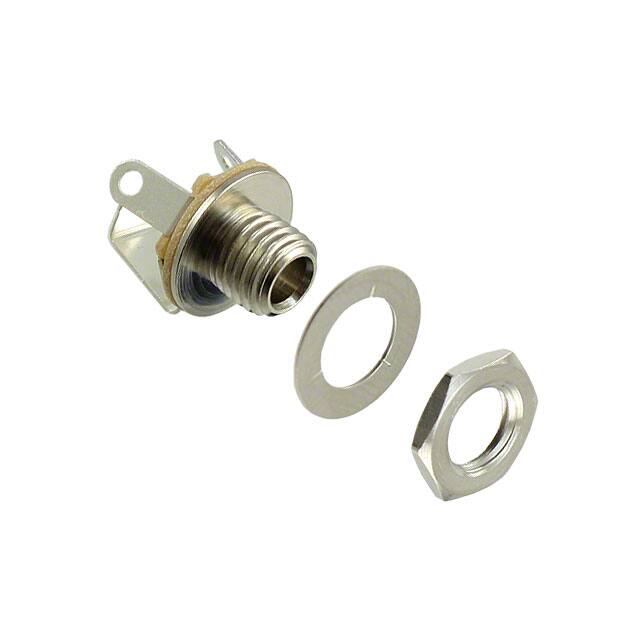

Includes

3 pcs - 1 Connector, 1 Nut, 1 Washer

Internal Switch(s)

Does Not Contain Switch

Body Color

Silver

Panel Hole Size

0.250 6.35mm

Industry Recognized Mating Diameter

3.50mm (0.141, 1/8, Mini Plug) - Headphone

Actual Diameter

0.142 (3.60mm)

Signal Lines

Mono

Features

Mounting Hardware, Thread Lock

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
