Factory Lead Time

2 Weeks

Mount

Free Hanging

Mounting Type

Free Hanging (In-Line)

Package / Case

Metal

Body Material

Zinc Alloy

Contact Material - Plating

Gold

Contact Materials

Brass

Insulation Materials

Teflon

Packaging

Bulk

JESD-609 Code

e4

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

Not Applicable

Termination

Solder

ECCN Code

EAR99

Connector Type

Phono (RCA) Jack

Gender

Female

HTS Code

8536.69.40.30

MIL Conformance

NO

DIN Conformance

NO

IEC Conformance

NO

Filter Feature

NO

Mixed Contacts

NO

Option

GENERAL PURPOSE

Orientation

Vertical

Shielding

Unshielded

Frequency

1.5GHz

Shell Finish

NICKEL

Number of Contacts

1

Empty Shell

NO

Cable Opening

0.236 (6.00mm)

Number of Positions/Contacts

2 Conductors, 2 Contacts

Includes

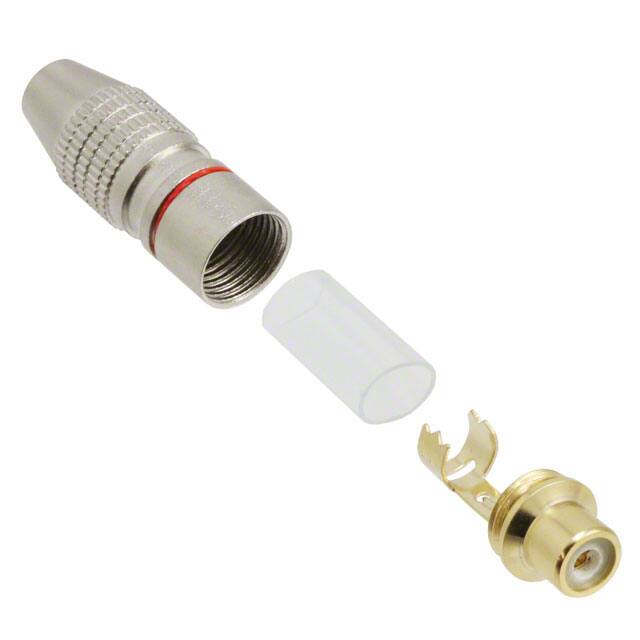

3 pcs - 1 Connector, 1 Handle, 1 Insulator Tube

Internal Switch(s)

Does Not Contain Switch

Body Color

Silver

Industry Recognized Mating Diameter

3.20mm ID, 9.00mm OD (RCA)

Signal Lines

Mono

Diameter

13mm

Length

41.8mm

REACH SVHC

No SVHC

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
