Factory Lead Time

8 Weeks

Mount

PCB, Through Hole

Mounting Type

Through Hole, Right Angle

Housing Material

Liquid Crystal Polymer (LCP)

Body Material

Copper Alloy

Contact Material - Plating

Silver

Contact Finish Mating

NOT SPECIFIED

Contact Materials

Copper Alloy

Voltage Rated

500V

Packaging

Bulk

Series

35

Published

2006

JESD-609 Code

e4

Part Status

Active

Moisture Sensitivity Level (MSL)

Not Applicable

Number of Terminations

6

Termination

Solder

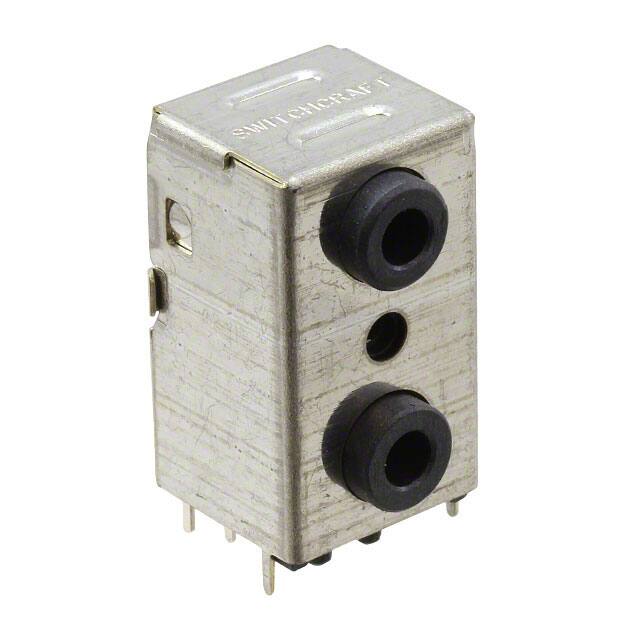

Connector Type

Phone Jack, Dual

Color

Black

Gender

Female

MIL Conformance

NO

DIN Conformance

NO

IEC Conformance

NO

Option

GENERAL PURPOSE

Orientation

Right Angle

Shielding

Shielded

Depth

16.1mm

Number of Contacts

3

Number of Ports

2

Number of Poles

3

Number of Positions/Contacts

2 Sets of 3 Conductors, 8 Contacts

Internal Switch(s)

Two Switches

Body Color

Silver, Black

Industry Recognized Mating Diameter

3.50mm (0.141, 1/8, Mini Plug) - Headphone

Actual Diameter

0.142 (3.60mm)

Signal Lines

Stereo (3 Conductor, TRS)

Height

26.7mm

Length

15mm

RoHS Status

ROHS3 Compliant

Flammability Rating

UL94 V-0

Lead Free

Lead Free
