Factory Lead Time

12 Weeks

Mounting Type

Free Hanging (In-Line)

Mount

Cable, Free Hanging

Material

Polybutylene

Housing Material

Ethyl Cellulose

Weight

27.2g

Body Material

Brass

Contact Material - Plating

Tin

Contact Materials

Copper Alloy

Contact Finish Mating

NOT SPECIFIED

Packaging

Bulk

Series

TWIN-PLUG®

Part Status

Active

Number of Terminations

6

Termination

Screw

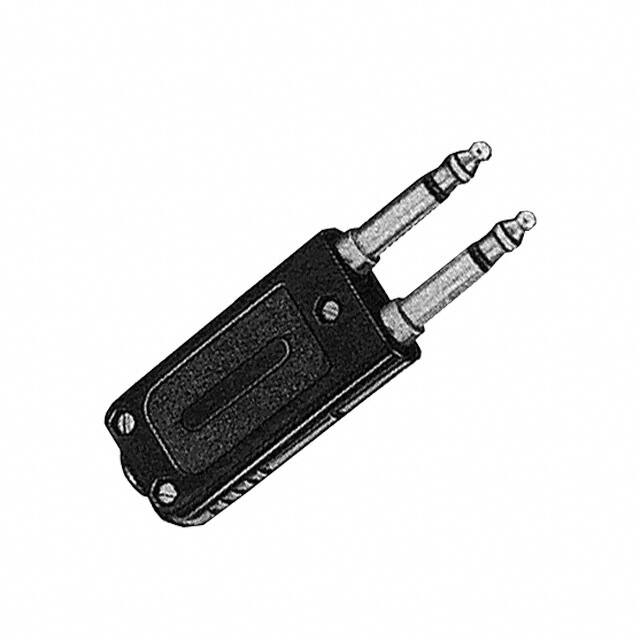

Connector Type

Phone Plug, Twin

Color

Black

Gender

Male

Additional Feature

POLARIZED

Power Rating

1W

Voltage - Rated DC

24V

MIL Conformance

NO

DIN Conformance

NO

IEC Conformance

NO

Option

GENERAL PURPOSE

Orientation

Straight

Shielding

Unshielded

Number of Contacts

3

Lead Length

310mm

Number of Ports

2

Number of Poles

6

Cable Opening

0.313 (7.95mm)

Number of Positions/Contacts

2 Sets of 3 Conductors, 6 Contacts

Includes

10 pcs - 2 Connectors, 2 pc Handle, 3 Nuts, 3 Screws

Power Consumption

1W

Internal Switch(s)

Does Not Contain Switch

Industry Recognized Mating Diameter

6.35mm (0.250, 1/4) - Headphone

Actual Diameter

0.250 (6.35mm)

Signal Lines

Stereo (3 Conductor, TRS)

Mating Length/Depth

1.140 28.90mm

Height

40mm

Width

40mm

Thickness

20mm

REACH SVHC

No SVHC

RoHS Status

ROHS3 Compliant

Lead Free

Contains Lead
