Lifecycle Status

ACTIVE (Last Updated: 6 months ago)

Factory Lead Time

24 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

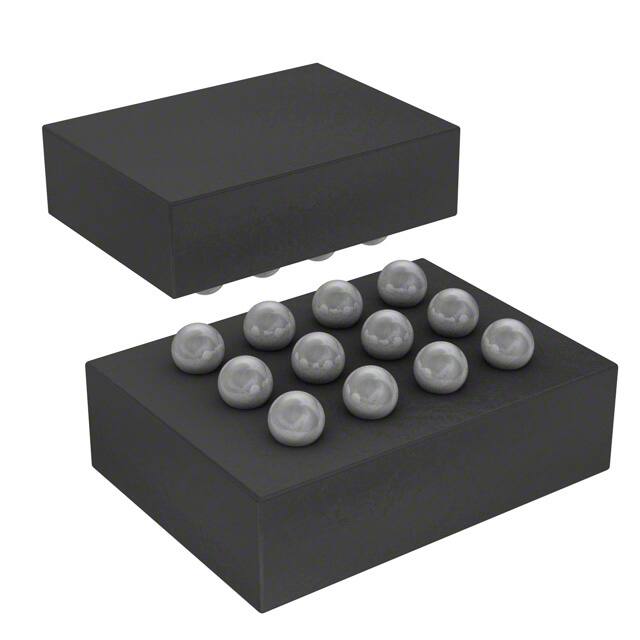

Package / Case

12-UFBGA, FCBGA

Number of Pins

12

Operating Temperature

-40°C~85°C TA

Packaging

Tape & Reel (TR)

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

12

ECCN Code

EAR99

Type

Class AB

Voltage - Supply

2.2V~5.5V

Terminal Position

BOTTOM

Terminal Form

BALL

Peak Reflow Temperature (Cel)

260

Number of Functions

1

Terminal Pitch

0.5mm

Time@Peak Reflow Temperature-Max (s)

40

Base Part Number

TS472

Pin Count

12

Output Type

1-Channel (Mono)

Operating Supply Voltage

5V

Supply Voltage-Min (Vsup)

2.2V

Number of Channels

1

Nominal Supply Current

2.4mA

Supply Type

Single

Bandwidth

20 kHz

Voltage Gain

41dB

Power Supply Rejection Ratio (PSRR)

80dB

Gain

41 dB

Features

Differential Inputs, Microphone, Shutdown, Standby

Height Seated (Max)

0.6mm

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
