Lifecycle Status

ACTIVE (Last Updated: 1 day ago)

Factory Lead Time

13 Weeks

Contact Plating

Tin

Mounting Type

Surface Mount

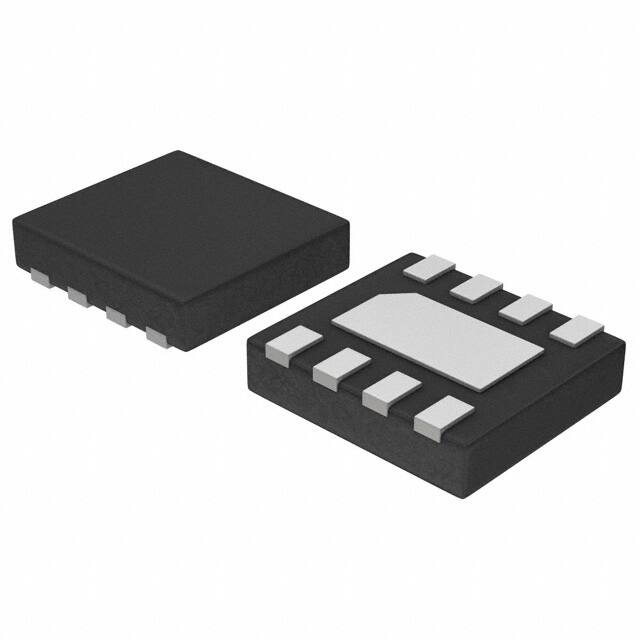

Package / Case

8-UFDFN Exposed Pad

Surface Mount

YES

Number of Pins

8

Power - Output (Max)

2.65W

Current - Supply (Nom)

4.6mA

Operating Temperature

-40°C~85°C TA

Packaging

Tape & Reel (TR)

Published

2006

JESD-609 Code

e3

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

8

ECCN Code

EAR99

Type

Class D

Voltage - Supply

2.5V~5.5V

Terminal Position

DUAL

Peak Reflow Temperature (Cel)

260

Number of Functions

1

Terminal Pitch

0.5mm

Time@Peak Reflow Temperature-Max (s)

40

Base Part Number

NCP2820

Pin Count

8

Output Type

1-Channel (Mono)

Max Output Current

1.5A

Operating Supply Voltage

5V

Number of Channels

1

Output Power

2.19W

Common Mode Rejection Ratio

57 dB

Halogen Free

Halogen Free

Supply Type

Single

Bandwidth

20 kHz

Power Supply Rejection Ratio (PSRR)

65dB

Max Output Power x Channels @ Load

2.65W x 1 @ 4 Ω

Load Impedance

4Ohm

Features

Depop, Differential Inputs, Short-Circuit and Thermal Protection, Shutdown

Length

2.2mm

Height Seated (Max)

0.55mm

Width

2mm

REACH SVHC

No SVHC

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
