Mount

Surface Mount

Mounting Type

Surface Mount

Package / Case

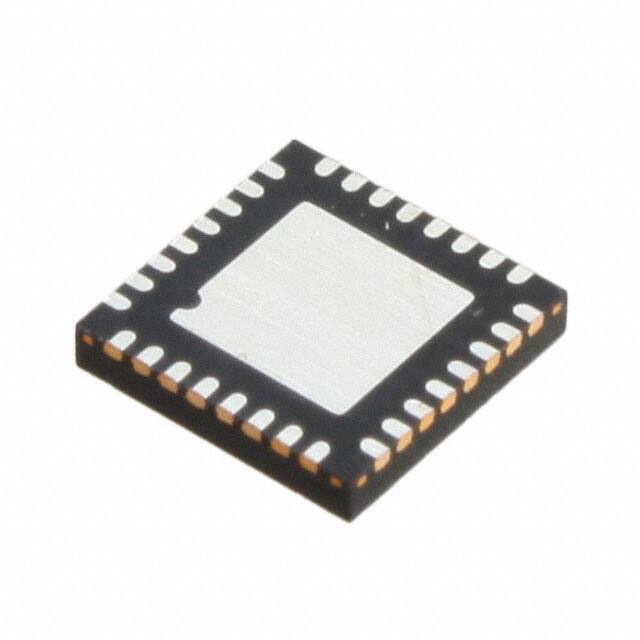

32-VFQFN Exposed Pad

Number of Pins

32

Power - Output (Max)

2W

Current - Supply (Nom)

12mA

Operating Temperature

-40°C~85°C TA

Packaging

Tape & Reel (TR)

JESD-609 Code

e3

Pbfree Code

yes

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

32

ECCN Code

EAR99

Type

Class AB

Terminal Finish

Matte Tin (Sn) - annealed

Voltage - Supply

4.5V~5.5V

Terminal Position

QUAD

Peak Reflow Temperature (Cel)

260

Number of Functions

1

Terminal Pitch

0.5mm

Base Part Number

TS4982

Pin Count

32

Output Type

2-Channel (Stereo) with Stereo Headphones

Operating Supply Voltage

5V

Power Supplies

5V

Number of Channels

2

Max Supply Current

12mA

Output Power

2W

Bandwidth

22 kHz

Voltage Gain

13.5dB

Power Supply Rejection Ratio (PSRR)

75dB

Gain

3.5 dB

Max Dual Supply Voltage

5.5V

Min Dual Supply Voltage

4.5V

Dual Supply Voltage

5V

Max Output Power x Channels @ Load

2W x 2 @ 4 Ω; 125mW x 2 @ 16 Ω

Features

3D, Depop, Short-Circuit and Thermal Protection, Standby

Length

5mm

Height Seated (Max)

1mm

Width

5mm

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
