Package / Case

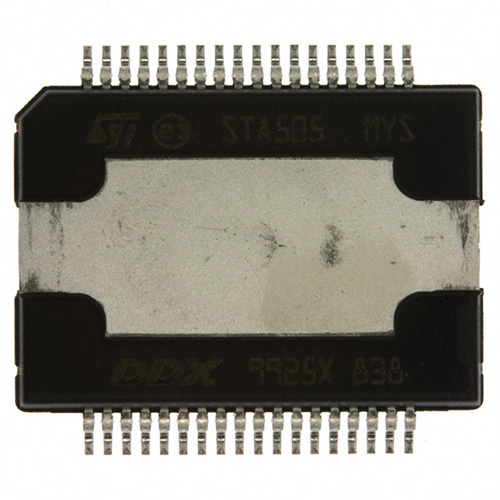

PowerSO-36 Exposed Top Pad

Mounting Type

Surface Mount

Mount

Surface Mount

Number of Pins

36

Current - Supply (Nom)

50mA

Power - Output (Max)

50W

Packaging

Tape & Reel (TR)

Operating Temperature

-40°C~90°C TA

JESD-609 Code

e3

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

36

ECCN Code

EAR99

Type

Class D

Terminal Finish

Matte Tin (Sn)

HTS Code

8542.39.00.01

Voltage - Supply

10V~36V

Terminal Position

DUAL

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

245

Number of Functions

4

Supply Voltage

30V

Terminal Pitch

0.65mm

Time@Peak Reflow Temperature-Max (s)

30

Base Part Number

STA505

Pin Count

36

Output Type

1-Channel (Mono) or 2-Channel (Stereo)

Operating Supply Voltage

28V

Quiescent Current

50mA

Output Power

50W

Supply Type

Single

Turn On Time

0.1 µs

Output Peak Current Limit-Nom

6A

Turn Off Time

0.1 µs

Max Output Power x Channels @ Load

50W x 2 @ 8 Ω 80W x 1 @ 8 Ω

Built-in Protections

OVER CURRENT; THERMAL; UNDER VOLTAGE

Output Current Flow Direction

SOURCE SINK

Features

Thermal Shutdown Protection

Width

11mm

Height Seated (Max)

3.43mm

Length

15.9mm

RoHS Status

ROHS3 Compliant

Radiation Hardening

No
