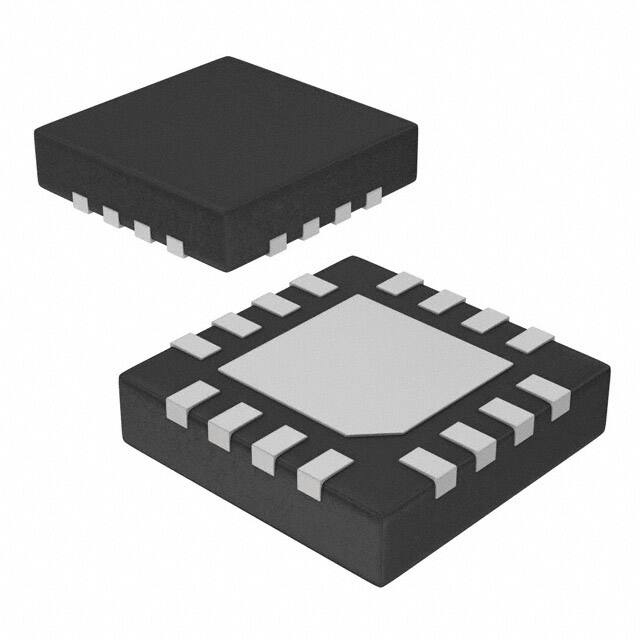

Package / Case

16-VQFN Exposed Pad

Mounting Type

Surface Mount

Mount

Surface Mount

Number of Pins

8

Current - Supply (Nom)

7.4mA

Power - Output (Max)

1W

Packaging

Tape & Reel (TR)

Operating Temperature

-40°C~85°C TA

Pbfree Code

yes

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

16

ECCN Code

EAR99

Type

Class AB

Voltage - Supply

2.7V~5.5V

Terminal Position

QUAD

Number of Functions

1

Terminal Pitch

0.65mm

Base Part Number

TS4998

Pin Count

16

JESD-30 Code

S-XQCC-N16

Output Type

2-Channel (Stereo)

Operating Supply Voltage

5V

Number of Channels

2

Output Power

1W

Common Mode Rejection Ratio

57 dB

Supply Type

Single

Bandwidth

20 kHz

Gain Bandwidth Product

1.5MHz

Power Supply Rejection Ratio (PSRR)

80dB

Gain

15 dB

Max Output Power x Channels @ Load

1W x 2 @ 8 Ω

Harmonic Distortion

1%

Features

Depop, Differential Inputs, Standby, Thermal Protection

Height Seated (Max)

1mm

Length

4mm

RoHS Status

ROHS3 Compliant

Radiation Hardening

No

Lead Free

Lead Free
