Mount

Through Hole

Mounting Type

Through Hole

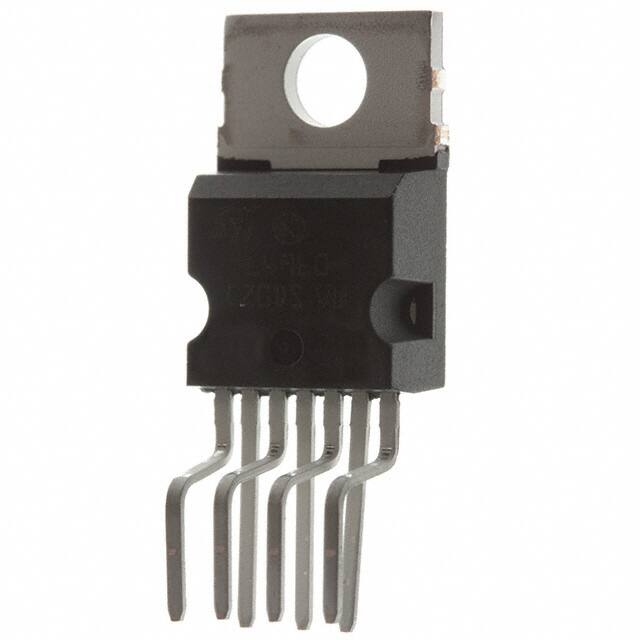

Package / Case

Heptawatt-7 (Vertical, Bent and Staggered Leads)

Number of Pins

7

Power - Output (Max)

40W

Current - Supply (Nom)

6A

Operating Temperature

0°C~70°C TA

Packaging

Tube

Pbfree Code

yes

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

7

ECCN Code

EAR99

Type

Class AB

Max Power Dissipation

30W

Voltage - Supply

±6V~25V

Terminal Position

ZIG-ZAG

Number of Functions

1

Base Part Number

TDA2052

Pin Count

7

Output Type

1-Channel (Mono)

Number of Channels

1

Power Dissipation

30W

Quiescent Current

40mA

Output Power

60W

Supply Type

Dual

Input Offset Voltage (Vos)

15mV

Bandwidth

20 kHz

Voltage Gain

80dB

Power Supply Rejection Ratio (PSRR)

50dB

Gain

80 dB

Max Dual Supply Voltage

25V

Min Dual Supply Voltage

6V

Dual Supply Voltage

24V

Input Bias Current

500nA

Max Output Power x Channels @ Load

40W x 1 @ 4 Ω

Harmonic Distortion

10%

Load Impedance

8Ohm

Features

Mute, Short-Circuit and Thermal Protection, Standby

Height

9.2mm

Length

10.4mm

Width

4.8mm

REACH SVHC

No SVHC

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
