Mount

Through Hole

Mounting Type

Through Hole

Package / Case

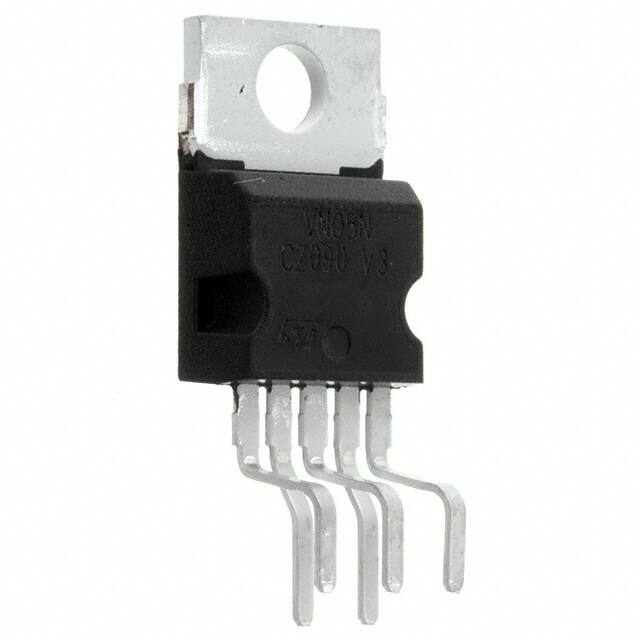

Pentawatt-5 (Vertical, Bent and Staggered Leads)

Number of Pins

5

Weight

2.721554g

Operating Temperature

-40°C~150°C TJ

Packaging

Tube

JESD-609 Code

e3

Pbfree Code

yes

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Termination

Through Hole

ECCN Code

EAR99

Type

Class AB

Terminal Finish

Matte Tin (Sn) - annealed

Max Power Dissipation

25W

Voltage - Supply

5V~40V ±2.5V~20V

Terminal Position

ZIG-ZAG

Base Part Number

TDA2040

Output Type

1-Channel (Mono)

Max Output Current

4A

Number of Channels

1

Voltage

18V

Power Dissipation

25W

Output Current

4A

Quiescent Current

100mA

Output Power

22W

Supply Type

Dual

Input Offset Voltage (Vos)

20mV

Nominal Input Voltage

15V

Voltage Gain

80dB

Power Supply Rejection Ratio (PSRR)

50dB

Gain

80 dB

Max Dual Supply Voltage

20V

Max Output Power

22W

Min Dual Supply Voltage

4.5V

Dual Supply Voltage

18V

Input Bias Current

1μA

Max Output Power x Channels @ Load

22W x 1 @ 4 Ω

Number of Amplifiers

1

Load Impedance

4Ohm

Features

Short-Circuit and Thermal Protection

Height

9.2mm

Length

10.4mm

Width

4.8mm

REACH SVHC

No SVHC

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
