Mount

Surface Mount

Mounting Type

Surface Mount

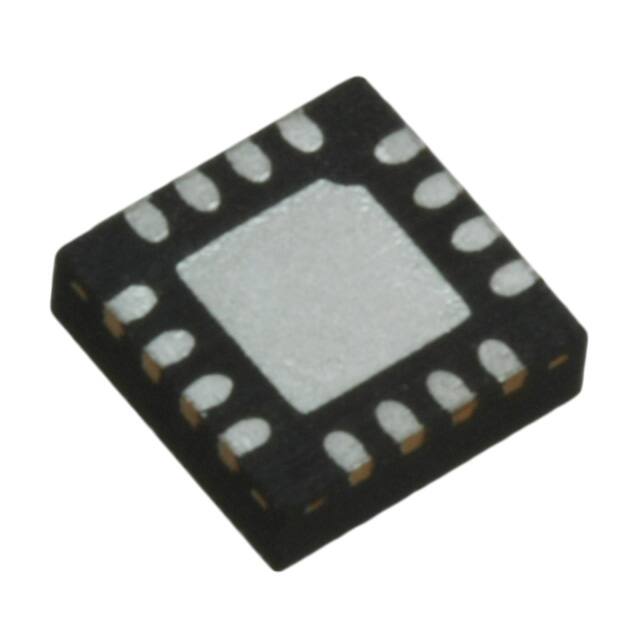

Package / Case

16-VQFN Exposed Pad

Number of Pins

16

Operating Temperature

-40°C~85°C TA

Packaging

Tape & Reel (TR)

JESD-609 Code

e3

Pbfree Code

yes

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

16

ECCN Code

EAR99

Type

Class D

Terminal Finish

Matte Tin (Sn) - annealed

HTS Code

8542.33.00.01

Voltage - Supply

2.4V~4.3V

Terminal Position

QUAD

Terminal Form

NO LEAD

Peak Reflow Temperature (Cel)

260

Number of Functions

1

Terminal Pitch

0.5mm

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Base Part Number

TS4961

Pin Count

16

Qualification Status

Not Qualified

Output Type

1-Channel (Mono)

Operating Supply Voltage

3V

Supply Voltage-Min (Vsup)

2.4V

Number of Channels

1

Nominal Supply Current

2.1mA

Output Power

1.6W

Common Mode Rejection Ratio

57 dB

Bandwidth

58000 kHz

Power Supply Rejection Ratio (PSRR)

63dB

Max Output Power

1.95W

Max Output Power x Channels @ Load

1.95W x 1 @ 4 Ω

Harmonic Distortion

1%

Features

Depop, Differential Inputs, Standby

Length

3mm

Height Seated (Max)

1mm

Width

3mm

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
