Lifecycle Status

ACTIVE (Last Updated: 7 months ago)

Factory Lead Time

6 Weeks

Contact Plating

Tin

Mount

Surface Mount

Mounting Type

Surface Mount

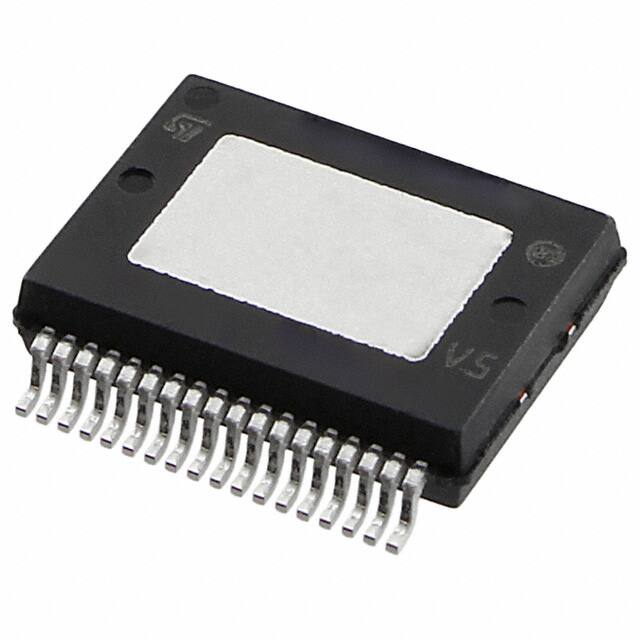

Package / Case

36-PowerFSOP (0.295, 7.50mm Width)

Number of Pins

36

Power - Output (Max)

220W

Operating Temperature

0°C~70°C TA

Packaging

Tape & Reel (TR)

JESD-609 Code

e3

Part Status

Active

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

36

ECCN Code

EAR99

Type

Class D

Voltage - Supply

14V~36V

Terminal Position

DUAL

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

260

Number of Functions

1

Terminal Pitch

0.5mm

Time@Peak Reflow Temperature-Max (s)

30

Base Part Number

TDA7498

Pin Count

36

Output Type

1-Channel (Mono) or 2-Channel (Stereo)

Number of Channels

2

Operating Supply Current

60mA

Output Power

220W

Bandwidth

20 kHz

Voltage Gain

35.8dB

Max Output Power x Channels @ Load

220W x 1 @ 3 Ω; 160W x 2 @ 4 Ω

Voltage - Supply (Min)

14V

Harmonic Distortion

10%

Features

Differential Inputs, Mute, Short-Circuit and Thermal Protection, Standby

Length

10.3mm

Width

7.5mm

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
