Mount

Surface Mount

Mounting Type

Surface Mount

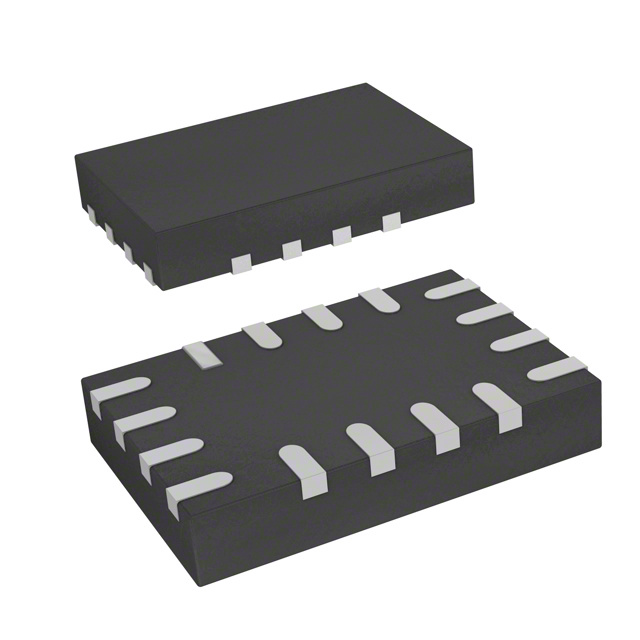

Package / Case

16-UFQFN

Number of Pins

16

Number of I/Os

8

Operating Temperature

-40°C~85°C

Packaging

Tape & Reel (TR)

Series

Xpander Logic™

JESD-609 Code

e4

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

16

ECCN Code

EAR99

Terminal Finish

Nickel/Palladium/Gold (Ni/Pd/Au)

Voltage - Supply

1.65V~3.6V

Terminal Position

QUAD

Peak Reflow Temperature (Cel)

260

Terminal Pitch

0.4mm

Time@Peak Reflow Temperature-Max (s)

30

Base Part Number

STMPE801

Pin Count

16

Output Type

Push-Pull

Operating Supply Voltage

3.6V

Interface

I2C

Number of Ports

1

Nominal Supply Current

500μA

Number of Bits

8

Clock Frequency

400kHz

Interrupt Output

Yes

Features

POR

Length

2.6mm

Height Seated (Max)

0.65mm

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
