Mounting Type

Through Hole

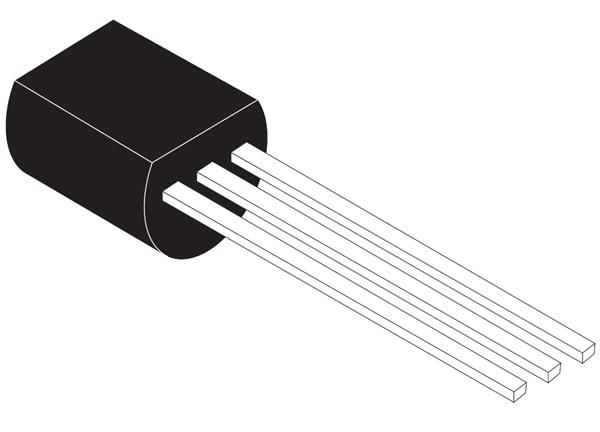

Package / Case

TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)

Surface Mount

NO

Number of Pins

3

Operating Temperature

0°C~70°C TA

Packaging

Tape & Reel (TR)

Tolerance

±4.02%

JESD-609 Code

e3

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

3

ECCN Code

EAR99

Terminal Finish

TIN

HTS Code

8542.39.00.01

Terminal Position

BOTTOM

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Number of Functions

1

Terminal Pitch

1.27mm

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Base Part Number

LM336

JESD-30 Code

O-PBCY-T3

Number of Outputs

1

Qualification Status

Not Qualified

Output Type

Fixed

Trim/Adjustable Output

YES

Analog IC - Other Type

TWO TERMINAL VOLTAGE REFERENCE

Voltage - Output

2.49V

Voltage - Output (Min/Fixed)

2.49V

Reference Type

Shunt

Supply Current-Max (Isup)

10mA

Output Voltage-Max

2.54V

Output Voltage-Min

2.44V

Temp Coef of Voltage-Max

43.811 ppm/°C

Current - Cathode

400μA

RoHS Status

ROHS3 Compliant
