Factory Lead Time

8 Weeks

Package / Case

48-VFQFN Exposed Pad

Surface Mount

YES

Usage Level

Automotive grade

Operating Temperature

-40°C~85°C

Packaging

Tray

Published

2017

Part Status

Active

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

48

Additional Feature

ALSO HAVING IEEE 802.1Q AND IEEE 802.3AZ BUS INTERFACE STANDARD

HTS Code

8542.31.00.01

Voltage - Supply

1.2V 2.5V 3.3V

Terminal Position

QUAD

Terminal Form

NO LEAD

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Supply Voltage

1.2V

Terminal Pitch

0.4mm

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

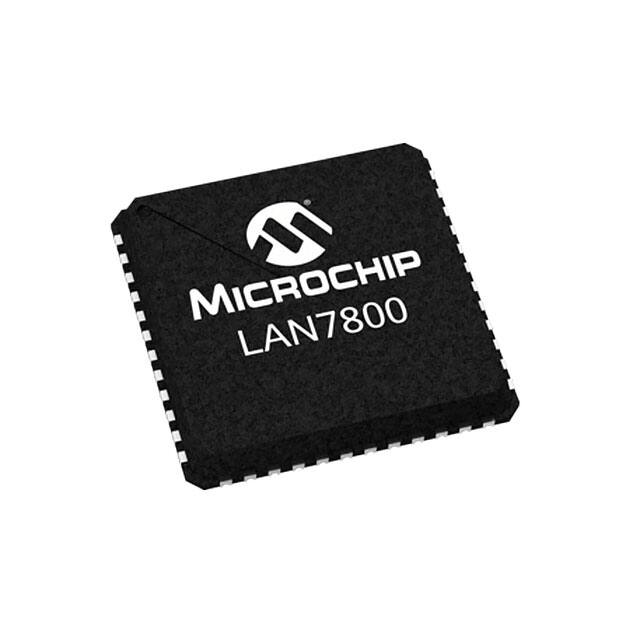

Base Part Number

LAN7800

JESD-30 Code

S-XQCC-N48

Function

Controller

Clock Frequency

25MHz

Current - Supply

1mA~4mA

Protocol

Ethernet

Screening Level

TS 16949

Standards

10/100/1000 Base-TX PHY

Data Transfer Rate-Max

625 MBps

Drive Interface Standard

IEEE 802.3; IEEE 802.3U; IEEE

Length

6mm

Height Seated (Max)

0.9mm

Width

6mm

RoHS Status

ROHS3 Compliant
