Factory Lead Time

8 Weeks

Contact Plating

Tin

Mount

Surface Mount

Package / Case

128-BFQFP

Number of Pins

128

Usage Level

Commercial grade

Operating Temperature

0°C~70°C

Packaging

Tray

Published

2003

JESD-609 Code

e3

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

128

Terminal Position

QUAD

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

245

Supply Voltage

3.3V

Terminal Pitch

0.5mm

Time@Peak Reflow Temperature-Max (s)

40

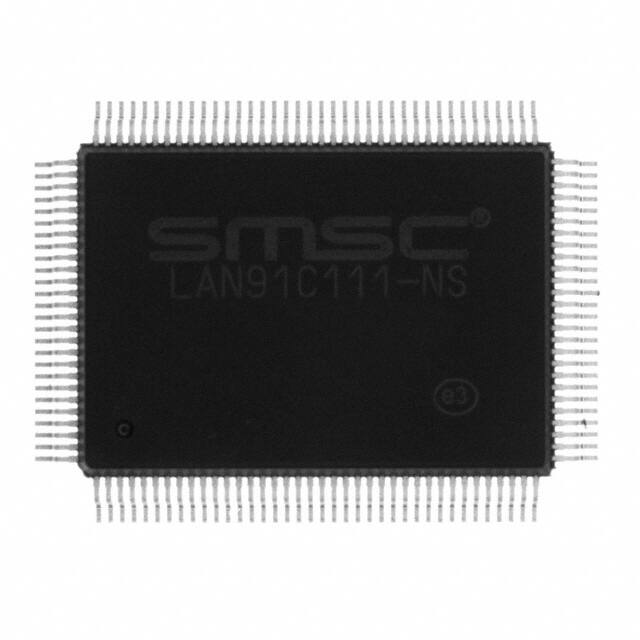

Base Part Number

LAN91C111

Function

Controller

Operating Supply Voltage

3.3V

Supply Voltage-Max (Vsup)

3.63V

Interface

Parallel

Max Supply Current

140mA

Clock Frequency

25MHz

Data Rate

100 Mbps

Protocol

Ethernet

Boundary Scan

NO

Low Power Mode

YES

Number of Transceivers

1

Number of Serial I/Os

2

Standards

10/100 Base-T/TX PHY

Bus Compatibility

ARM; SH; POWERPC; COLDFIRE; 680X0; 683XX; MIPS R3000

Data Encoding/Decoding Method

NRZ; BIPH-LEVEL(MANCHESTER)

Height

3.05mm

Length

20.1mm

Width

14.1mm

REACH SVHC

No SVHC

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
