Factory Lead Time

10 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

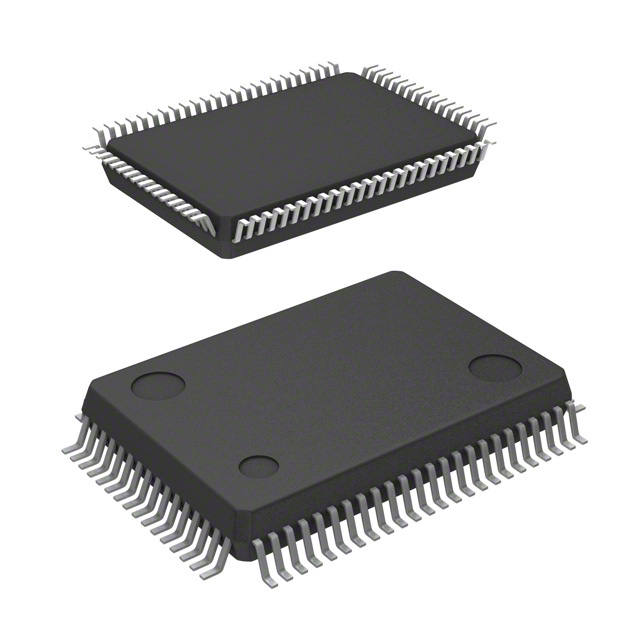

Package / Case

80-BQFP

Operating Temperature

-20°C~75°C TA

Packaging

Bulk

Published

2010

JESD-609 Code

e2

Pbfree Code

yes

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

80

ECCN Code

EAR99

Terminal Finish

Tin/Copper (Sn/Cu)

Applications

Consumer Audio

Voltage - Supply

5V~7.3V

Terminal Position

QUAD

Terminal Form

GULL WING

Peak Reflow Temperature (Cel)

260

Terminal Pitch

0.8mm

Time@Peak Reflow Temperature-Max (s)

10

Base Part Number

BD3816K1

JESD-30 Code

R-PQFP-G80

Function

Audio Signal Processor

Number of Outputs

1

Qualification Status

Not Qualified

Max Output Current

2A

Power Supplies

7V

Supply Voltage-Min (Vsup)

5V

Number of Channels

7

Interface

Serial

Output Configuration

High Side

Specifications

132dB

Fault Protection

Over Temperature, Reverse Current

Consumer IC Type

TONE CONTROL CIRCUIT

Number of Bands

2

Channel Separation

95 dB

Length

20mm

Height Seated (Max)

2.8mm

RoHS Status

ROHS3 Compliant
