Mounting Type

Through Hole

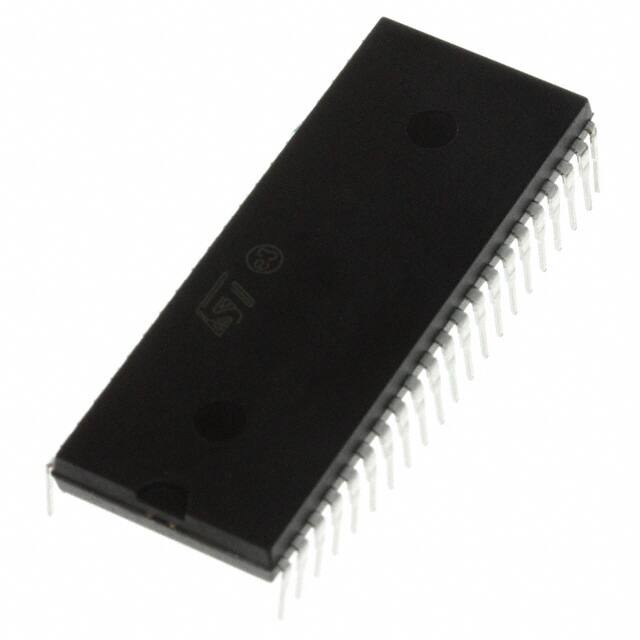

Package / Case

42-SDIP (0.600, 15.24mm)

Surface Mount

NO

Number of Pins

42

Operating Temperature

0°C~70°C TA

Packaging

Tube

JESD-609 Code

e3

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

42

ECCN Code

EAR99

Terminal Finish

MATTE TIN

Applications

Automotive Audio, Consumer Audio

Voltage - Supply

7V~10.2V

Terminal Position

DUAL

Peak Reflow Temperature (Cel)

245

Terminal Pitch

1.778mm

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Base Part Number

TDA7431

Function

Audio Tone Processor

Qualification Status

Not Qualified

Power Supplies

9V

Supply Voltage-Min (Vsup)

7V

Number of Channels

2

Interface

I2C

Nominal Supply Current

26mA

Specifications

0.5dB

Consumer IC Type

TONE CONTROL CIRCUIT

Number of Bands

2

Harmonic Distortion

0.01%

Channel Separation

90 dB

Length

36.83mm

Height Seated (Max)

5.08mm

RoHS Status

ROHS3 Compliant
