Factory Lead Time

11 Weeks

Mounting Type

Cable, Free Hanging

Shell Material

Thermoplastic

Housing Material

Plastic

Insert Material

Elastomer

Contact Finish Mating

Gold

Contact Materials

Copper Alloy

Insulation Materials

Rubber

Voltage Rated

250VAC/DC

Operating Temperature

-40°C~65°C

Packaging

Bulk

Series

EN3®

Published

1998

JESD-609 Code

e4

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

Not Applicable

Number of Terminations

5

Termination

Solder Cup

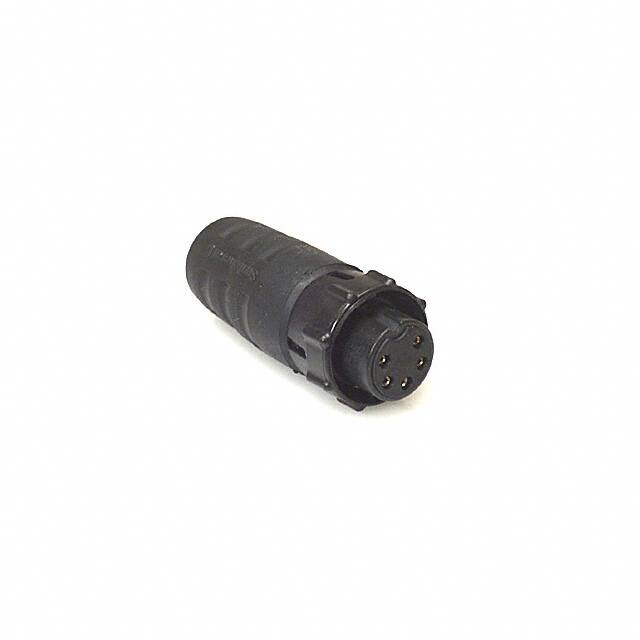

Connector Type

Plug, Female Sockets

Color

Black

Applications

General Purpose, Instrumentation, Marine, Medical

Gender

Female

Additional Feature

EN3

Fastening Type

Bayonet Lock

Voltage - Rated DC

1kV

DIN Conformance

NO

IEC Conformance

NO

Filter Feature

NO

Mixed Contacts

NO

Current Rating (Amps)

7.5A

Orientation

Keyed

Shielding

Unshielded

Ingress Protection

IP66/68 - Dust Tight, Water Resistant, Waterproof

Military Standard

NO

Number of Contacts

5

Mating Information

MULTIPLE MATING PARTS AVAILABLE

UL Flammability Code

UL94 V-0

Empty Shell

NO

Backshell Type

SOLID

Environmental Characteristics

ENVIRONMENT/MOISTURE RESISTANT

Max Voltage Rating (AC)

600V

Plating

Gold, Polymer, Thermoplastic

Coupling Type

SNAP

Number of Ports

1

Cable Opening

0.160 ~ 0.265 (4.06mm ~ 6.73mm)

Current Rating (Max)

3A

Features

Backshell, Cable Clamp, Coupling Nut

Length

39.83mm

RoHS Status

ROHS3 Compliant

Flammability Rating

UL94 V-0

Lead Free

Lead Free

Ratings

Dust Tight, IP66, IP68, Water Resistant, Waterproof
