Factory Lead Time

12 Weeks

Mounting Type

Free Hanging

Operating Temperature

-40°C~100°C

Packaging

Bulk

Series

Amphe - PPM® Sealed

Published

2011

Part Status

Active

Moisture Sensitivity Level (MSL)

Not Applicable

Termination

Solder Cup

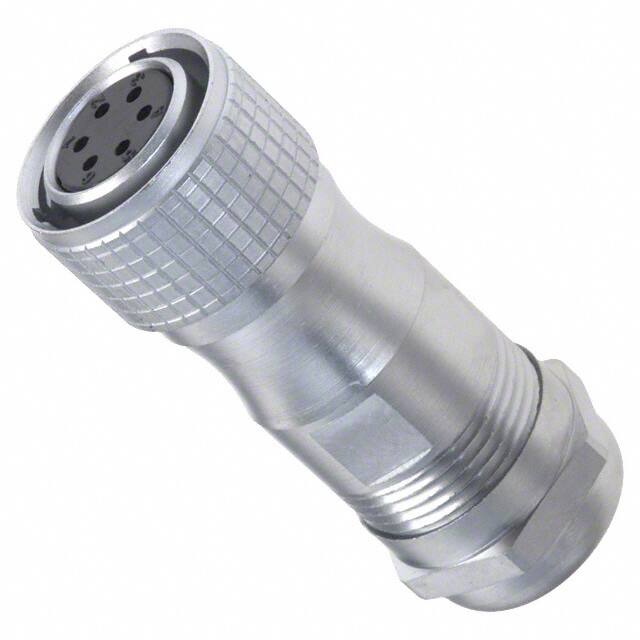

Connector Type

Plug, Female Sockets

Number of Positions

5

Color

Silver

Applications

Communication Systems, Instrumentation, Medical, Testing Equipment

Gender

Female

Additional Feature

STANDARD: IEC 61984, UL 94V-0

Fastening Type

Push-Pull

DIN Conformance

NO

IEC Conformance

YES

Filter Feature

NO

Mixed Contacts

NO

Option

GENERAL PURPOSE

Current Rating (Amps)

10A

Ingress Protection

IP67 - Dust Tight, Waterproof

Military Standard

NO

Shell Finish

Nickel

Shell Size - Insert

F

Number of Contacts

5

Mating Information

MULTIPLE MATING PARTS AVAILABLE

UL Flammability Code

UL94 V-0

Empty Shell

NO

Backshell Type

SOLID

Coupling Type

SNAP

Features

Backshell

REACH SVHC

unknown

RoHS Status

RoHS Compliant

Lead Free

Lead Free

Ratings

Dust Tight, IP67, Waterproof
