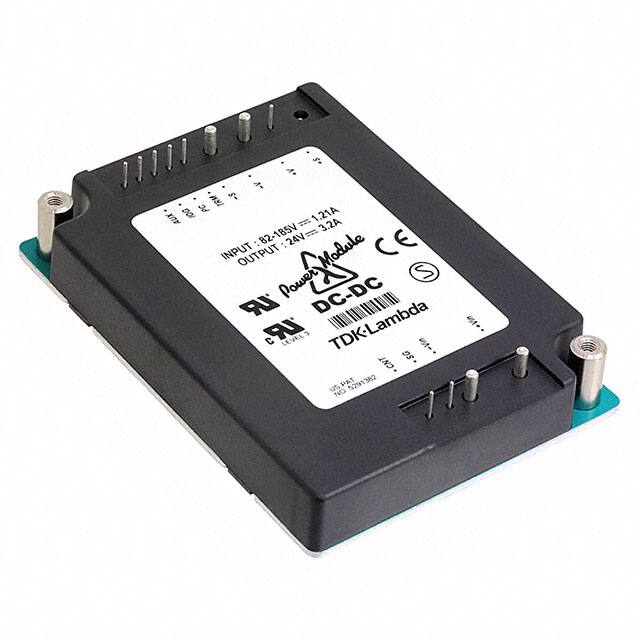

Lifecycle Status

OBSOLETE (Last Updated: 1 month ago)

Mount

Through Hole

Mounting Type

Through Hole

Package / Case

Module

Number of Pins

6

Operating Temperature

-20°C~85°C

Packaging

Bulk

Series

PH-S (75W)

Published

2013

Size / Dimension

3.85Lx1.61W x 0.50 H 86.0mmx41.0mmx12.7mm

Pbfree Code

no

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

ECCN Code

EAR99

Type

Isolated Module

Applications

ITE (Commercial)

Max Power Dissipation

75W

Terminal Position

UNSPECIFIED

Terminal Form

UNSPECIFIED

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Number of Functions

1

Depth

86mm

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

JESD-30 Code

R-XXFM-X

Number of Outputs

1

Qualification Status

Not Qualified

Voltage - Isolation

3kV

Voltage - Input (Max)

185V

Output Voltage

5V

Max Output Current

15A

Voltage - Input (Min)

82V

Input Voltage-Nom

110V

Trim/Adjustable Output

YES

Output Current

15A

Output Power

75W

Control Features

Enable, Active Low

Current - Output 1

15A

Isolation

Isolated

Features

Remote On/Off, OCP, OVP

Height

12.7mm

RoHS Status

RoHS Compliant
