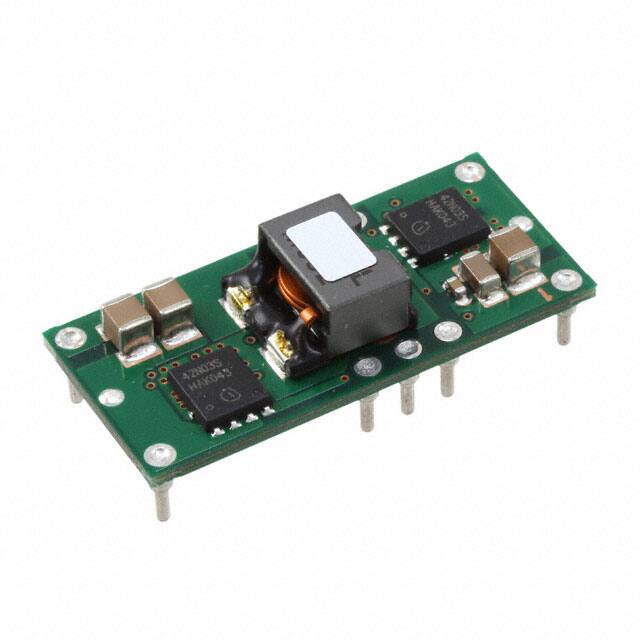

Mounting Type

Through Hole

Package / Case

10-DIP Module

Surface Mount

NO

Number of Pins

10

Weight

3.7g

Operating Temperature

-40°C~85°C

Packaging

Tray

Series

PTH05010Y

Size / Dimension

1.37Lx0.62W x 0.35 H 34.8mmx15.7mmx8.9mm

JESD-609 Code

e3

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

20

ECCN Code

EAR99

Type

Non-Isolated PoL Module

Terminal Finish

Tin (Sn)

Applications

ITE (Commercial)

Additional Feature

OUTPUT VARIES ACCORDING TO THE INPUT AND RESISTOR DIVIDER CONFIGURATION

HTS Code

8504.40.85.00

Max Power Dissipation

27W

Terminal Position

UNSPECIFIED

Terminal Form

PIN/PEG

Number of Functions

1

Depth

15.75mm

Base Part Number

TH05010

Pin Count

20

JESD-30 Code

R-XXMA-P20

Number of Outputs

1

Approval Agency

UL, VDE

Efficiency

88%

Voltage - Input (Max)

5.5V

Output Voltage

1.8V

Max Output Current

15A

Voltage - Input (Min)

4.5V

Input Voltage-Nom

5V

Trim/Adjustable Output

YES

Output Current

15A

Quiescent Current

10mA

Max Output Voltage

1.8V

Current - Output 1

15A

Min Output Voltage

550mV

Isolation

Non-Isolated

Height

8.89mm

Length

34.8mm

Radiation Hardening

No

RoHS Status

ROHS3 Compliant

Flammability Rating

UL94 V-0

Lead Free

Lead Free
