Package / Case

14-SIP Module

Mounting Type

Through Hole, Right Angle

Number of Pins

14

Weight

14g

Power Dissipation (Max)

12W

Voltage - Input (Nom)

12V

Series

PT6640 (24W)

Packaging

Tray

Operating Temperature

-40°C~85°C

Pbfree Code

yes

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

14

ECCN Code

EAR99

Type

Non-Isolated PoL Module

Applications

ITE (Commercial)

Terminal Position

SINGLE

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Number of Functions

1

Terminal Pitch

2.54mm

Depth

30.98mm

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

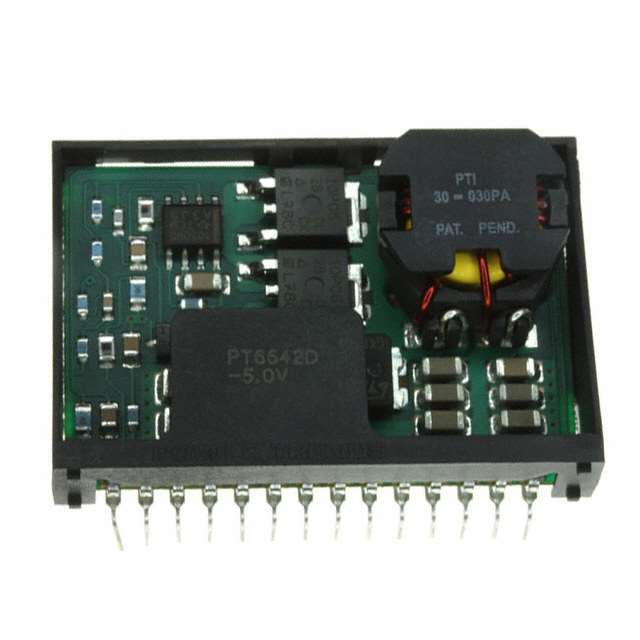

Base Part Number

PT6642

Number of Outputs

1

Qualification Status

Not Qualified

Efficiency

80%

Voltage - Input (Max)

25V

Voltage - Input (Min)

8V

Current - Output (Max)

4A

Current - Output

4A

Output Power

24W

Voltage - Output

-5V

Topology

Boost

Control Mode

VOLTAGE-MODE

Switcher Configuration

SINGLE

Switching Frequency-Max

600kHz

Isolation

Non-Isolated

Width

10.7mm

Length

43.43mm

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
