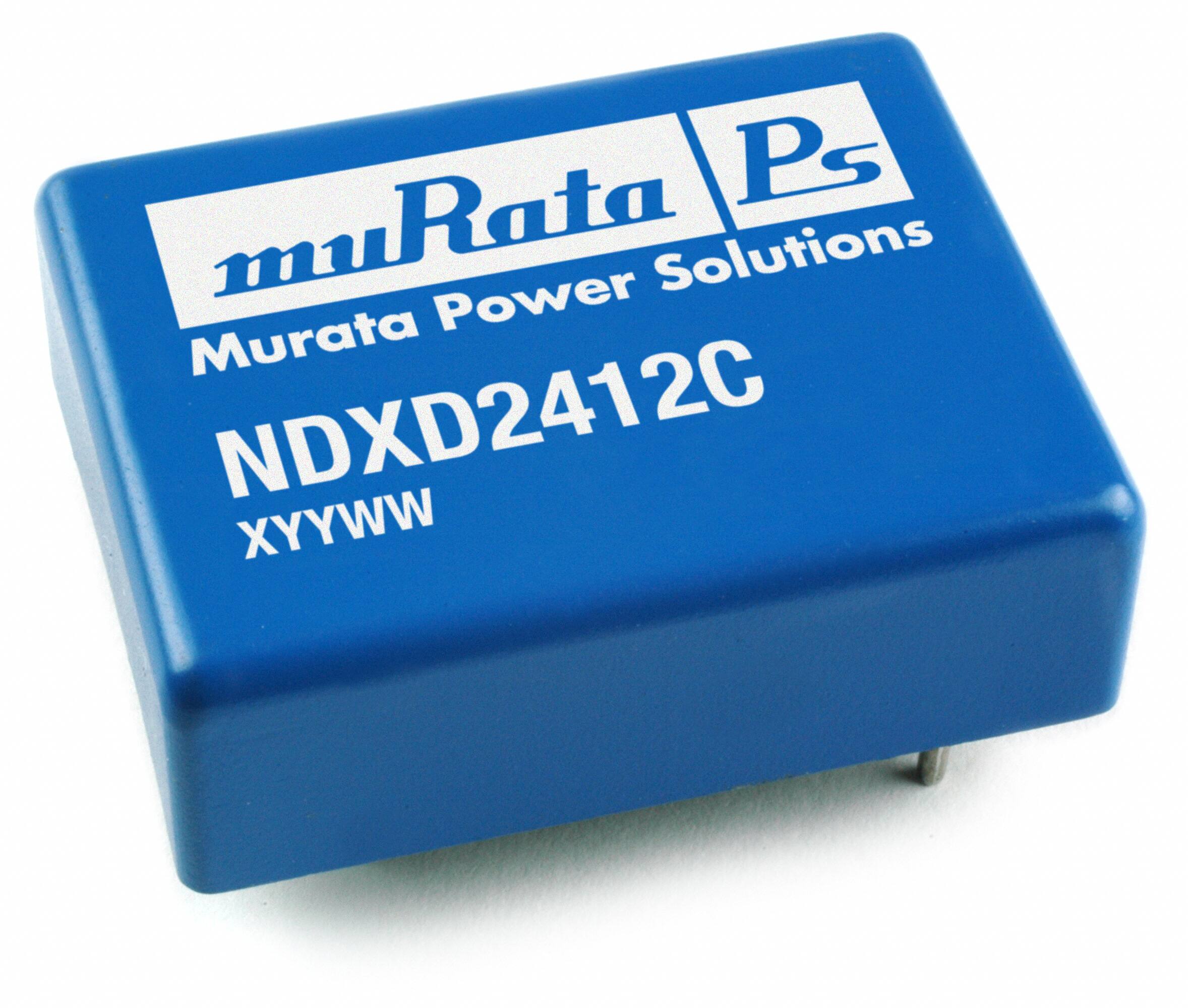

Mount

Through Hole

Mounting Type

Through Hole

Package / Case

6-DIP Module

Number of Pins

6

Operating Temperature

-40°C~85°C

Packaging

Tube

Series

NDX (7.5W)

Size / Dimension

1.26Lx0.98W x 0.39 H 32.0mmx24.9mmx9.9mm

JESD-609 Code

e4

Part Status

Obsolete

Moisture Sensitivity Level (MSL)

1 (Unlimited)

Number of Terminations

6

ECCN Code

EAR99

Type

Isolated Module

Terminal Finish

GOLD FLASH (4) OVER NICKEL

Applications

ITE (Commercial)

Power (Watts)

7W

Max Power Dissipation

7.5W

Terminal Position

DUAL

Terminal Form

PIN/PEG

Peak Reflow Temperature (Cel)

NOT SPECIFIED

Number of Functions

1

Depth

25.4mm

Reach Compliance Code

unknown

Time@Peak Reflow Temperature-Max (s)

NOT SPECIFIED

Pin Count

6

Number of Outputs

2

Qualification Status

Not Qualified

Efficiency

67%

Voltage - Isolation

1kV

Voltage - Input (Max)

9V

Output Voltage

5V

Max Output Current

600mA

Voltage - Input (Min)

4.5V

Input Voltage-Nom

5V

Trim/Adjustable Output

NO

Output Power

7.5W

Voltage - Output 2

-5V

Total Power Output-Max

6W

Isolation

Isolated

Height

9.906mm

RoHS Status

RoHS Compliant
